PBA75F-48概述

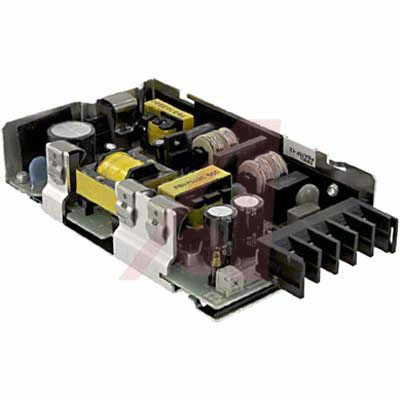

Power Supply; AC-DC; 48V; 1.6A; 85-264V In; Open Frame; Panel Mount; PFC; 77W; PBA Series

The PBA Series offers 40 different models with eight wattage ranges to chose from. Remote on/off option allows you to control the power supply without physically being there. Cover options are available.

Universal Input—85-264 VAC, 120-370 VDC

Power Factor Correction Complies with EN61000-3-2 Directive

83 ppm Documented Field Failure Rate

Over-Current Protection

Over-Voltage Protection

Remote Sensing

Remote On/Off on 300 W and Above Units

Power Alarm

Ul, C-UL, TUV and CE Approvals

Five-Year Warranty

PBA75F-48中文资料参数规格

技术参数

额定功率 75 W

输出接口数 1

输出电压 48 VDC

输出电流 1.6 A

输出功率 77 W

输入电压DC Max 370 V

输入电压DC Min 120 V

输入电压AC Max 264 V

输入电压AC Min 85 V

输出电流Max 1.6 A

输入电流Min 1 A

工作温度Max 71 ℃

工作温度Min -10 ℃

输入电压 85VAC ~ 264VAC

物理参数

工作温度 -10℃ ~ 71℃

其他

产品生命周期 Active

制造应用 ITE（商业）

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free
