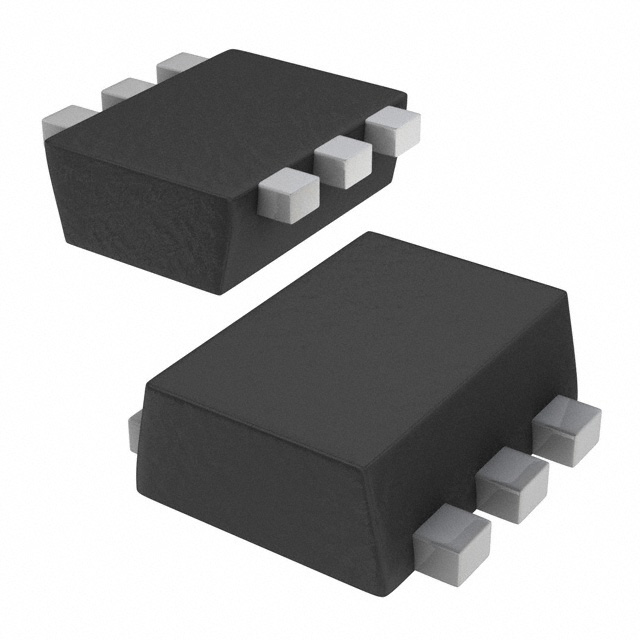

PEMB10

PNP/PNP resistor-equipped transistors; R1 = 2.2kΩ, R2 = 47kΩ

DESCRIPTION

PNP/PNP resistor-equipped transistors see “Simplified outline, symbol and pinning” for package details.

FEATURES

• Built-in bias resistors

• Simplified circuit design

• Reduction of component count

• Reduced pick and place costs.

APPLICATIONS

• Low current peripheral drivers

• Replacement of general purpose transistors in digital applications

• Control of IC inputs.
