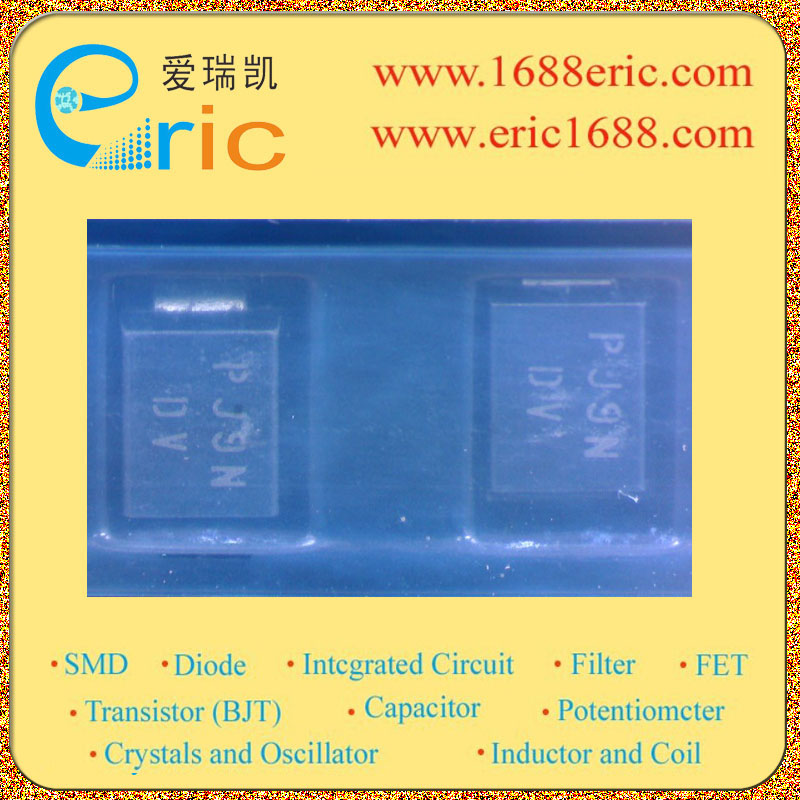

P6SMBJ85CA 瞬态抑制二极管TVS/ESD 85V 4.4A DO-214AA/SMB-85V 标记DV
极性Polarization| 双向 Bidirectional \---|--- 反向关断电压/工作电压VRWMReverse Standoff Voltage| 85V 反向击穿电压VBRBreakdown Voltage| 94.4V 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 600W 峰值脉冲电流IPPmPeak Forward Surge Current| 4.4A 额定耗散功率PdPower dissipation| Description & Applications| FEATURES • SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR POWER 600 Watts • For surface mounted applications in order to optimize board space. • Low profile package • Built-in strain relief • Glass passivated junction • Low inductance • Typical ID less than 1.0µA above 10V • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • High temperature soldering : 260°C /10 seconds at terminals • In compliance with EU RoHS 2002/95/EC directives 描述与应用| 特性 •表面贴装型瞬态电压抑制器功率600瓦 •对于表面安装应用，以优化电路板空间。 •薄型包装 •内置应变救灾 •玻璃钝化结 •低电感 •典型的ID小于1.0μA高于10V •塑料包装已获UL可燃性分类94V-O •高温焊接：260°C /10秒钟终端 •符合欧盟RoHS指令2002/95/EC指令
