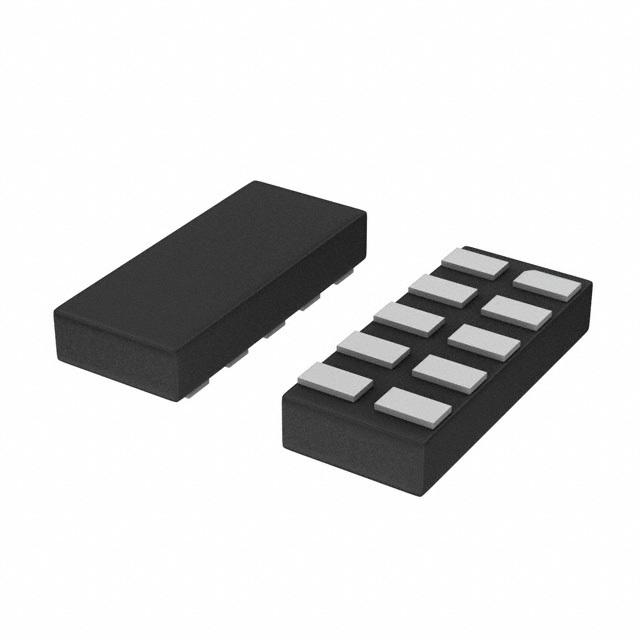

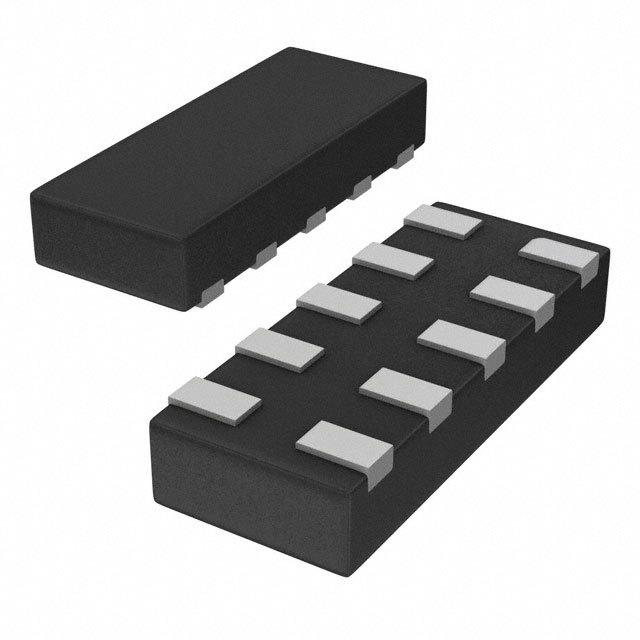

PUSB3FR4Z

静电保护装置, 3 V, DFN2510A, 10 引脚, 3.3 V, PUSB3 Series

TrEOS delivers an ideal combination of low capacitance, low clamping voltage, and high surge robustness, to safeguard systems. The key design features offer support on SuperSpeed USB including USB 3.1 at 10 Gbps. Other applications range from generic ESD protection across the board to support interface lines with very sensitive I/O"s. Bidirectional & Unidirectional available with 4 line protection in SOT1176-1 package.

.

Protecting four lines in SOT1176-2

.

Bidirectional and unidirectional devices available

.

Ultra-low capacitance down to 0.17 pF

.

Ultra-low dynamic resistance down to 0.27R typical

.

Deep snap back down to 1.5V typical
