TVS 二极管/ESD 抑制器
TVS /ESD 抑制器
立创商城:
Vrwm:58.1V 600W
艾睿:

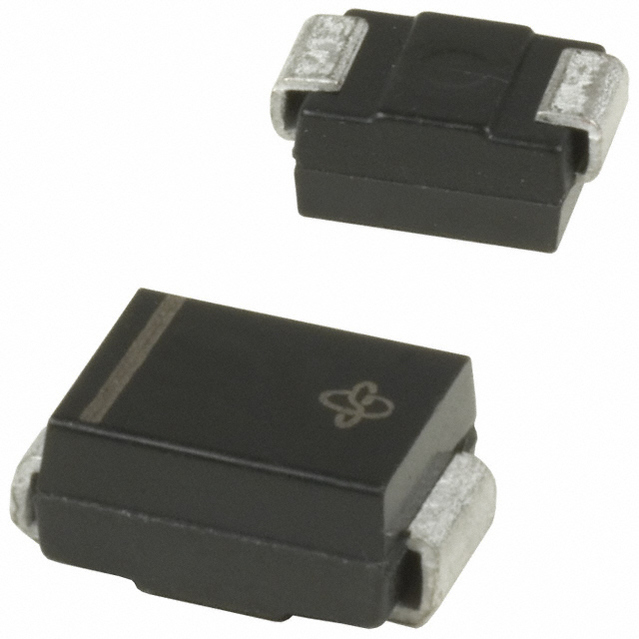

Surges can be a costly problem, avoid the pain and suffering by implementing this P6SMB68A-E3/52 TVS diode from Vishay. This device&s;s maximum clamping voltage is 92 V and minimum breakdown voltage is 64.6 V. Its test current is 1 mA. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. This TVS diode has an operating temperature range of -65 °C to 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
Chip1Stop:
Diode TVS Single Uni-Dir 58.1V 600W 2-Pin SMB T/R
TME:

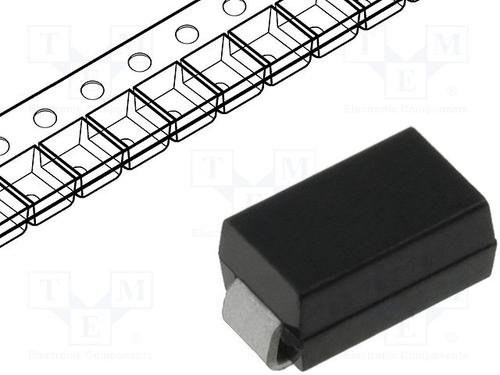

Diode: transil; 600W; 71.4V; 6.5A; unidirectional; SMB; TransZorb®
Win Source:
TVS DIODE 58.1VWM 92VC SMB
击穿电压 71.4 V
电路数 1
耗散功率 600 W
钳位电压 92 V
最大反向电压(Vrrm) 68V
测试电流 1 mA
最大反向击穿电压 64.6 V
脉冲峰值功率 600 W
最小反向击穿电压 64.6 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
封装 DO-214AA
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 750
RoHS标准
含铅标准 Lead Free
