TRANSZORB® 瞬态电压抑制器 SMT 单向 600W,P6SMB 系列,Vishay Semiconductor### 瞬态电压抑制器,Vishay Semiconductor
TRANSZORB® 瞬态电压抑制器 SMT 单向 600W,P6SMB 系列,Vishay Semiconductor
欧时:

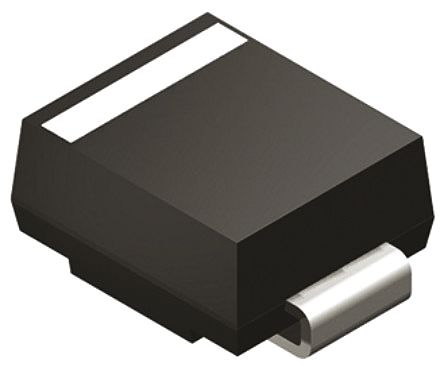

TVS 二极管 Vishay P6SMB16A-E3/52 单向, 600W, 22.5V, 2针 DO-214AA SMB封装
立创商城:
Vrwm:13.6V 600W
艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this P6SMB16A-E3/52 TVS diode from Vishay. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 22.5 V and minimum breakdown voltage is 15.2 V. This TVS diode has an operating temperature range of -65 °C to 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
Verical:
TVS Diode Single Uni-Dir 13.6V 600W 2-Pin SMB T/R
Win Source:
TVS DIODE 13.6VWM 22.5VC SMB
电容 1000 pF
正向电压 3.5 V
耗散功率 600 W
钳位电压 22.5 V
最大反向电压(Vrrm) 16V
测试电流 1 mA
最大反向击穿电压 15.2 V
脉冲峰值功率 600 W
最小反向击穿电压 15.2 V
击穿电压 15.2 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.57 mm
宽度 3.94 mm
高度 2.24 mm
封装 DO-214AA
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 750
RoHS标准
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
P6SMB16A-E3/52 VISHAY 威世 | 当前型号 | 当前型号 |
P6SMB16AT3G 安森美 | 功能相似 | P6SMB16A-E3/52和P6SMB16AT3G的区别 |
