P6SMB6.8A-E3/5B

表面贴装的TransZorb ？瞬态电压抑制器 Surface Mount TRANSZORB® Transient Voltage Suppressors

TRANSZORB® 瞬态电压抑制器 SMT 双向 600W，Vishay Semiconductor

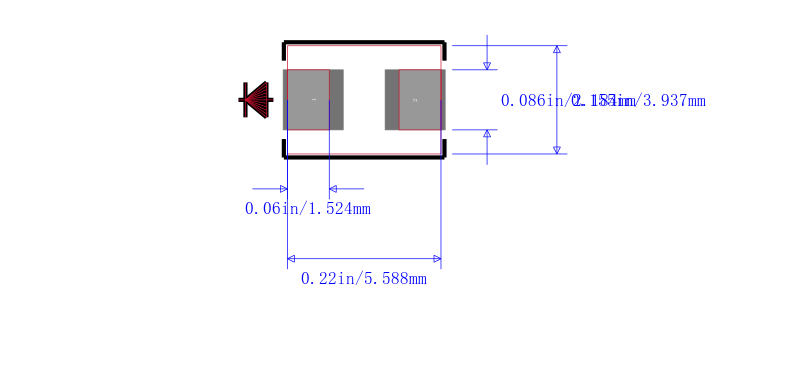

薄型 DO-214AA SMBJ 封装

极佳的夹持能力

非常快的响应时间

低电阻，带增量浪涌

### 瞬态电压抑制器，Vishay Semiconductor

立创商城:
P6SMB6.8A E3/5B

欧时:
TVS 二极管 Vishay P6SMB6.8A-E3/5B 单向, 600W, 10.5V, 2针 DO-214AA SMB封装

艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this P6SMB6.8A-E3/5B TVS diode from Vishay. This device&s;s maximum clamping voltage is 10.5 V and minimum breakdown voltage is 6.45 V. Its peak pulse power dissipation is 600 W. Its maximum leakage current is 1000 μA. Its test current is 10 mA. This TVS diode has an operating temperature range of -65 °C to 150 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.

Verical:
Diode TVS Single Uni-Dir 5.8V 600W 2-Pin SMB T/R
