S32V230 Family
Overview
The S32V234 is our 2nd generation vision processor family designed to support computation intensive applications for image processing and offers an ISP, powerful 3D GPU, dual APEX-2 vision accelerators, security and supports SafeAssure™. S32V234 is suited for ADAS, NCAP front camera, object detection and recognition, surround view, machine learning and sensor fusion applications. S32V234 is engineered for automotive-grade reliability, functional safety and security measures to support vehicle and industrial automation.
S32V234 has a complete enablement platform supported by S32 Design Studio IDE for Vision which includes a compiler, debugger, Vision SDK, Linux BSP and graph tools.
MoreLess
## Features
* Quad Arm® Cortex®-A53 cores running up to 1GHz, Plus M4 core up to 133 MHz
* Dual APEX-2 vision accelerator cores enabled by OpenCL™, APEX-CV and APEX graph tool
* Supports ISO 26262 functional safety up to ASIL-C, IEC 61508 and DO 178 applications
* 3D GPU GC3000 with OpenCL 1.2 EP 2.0, OpenGL ES 3.0, OpenVG 1.1
* Hardware security encryption on CSE2
* Embedded image sensor processing ISP for HDR, color conversion, tone mapping, etc. enabled by ISP graph tool
* MIPI CSI2 and parallel image sensor interfaces
* 4 MB on chip system RAM with end to end ECC on all memories
* DRAM controller support for DDR3 / DDR3L / LPDDR2
* -40 to 125 °C junction temperature operation

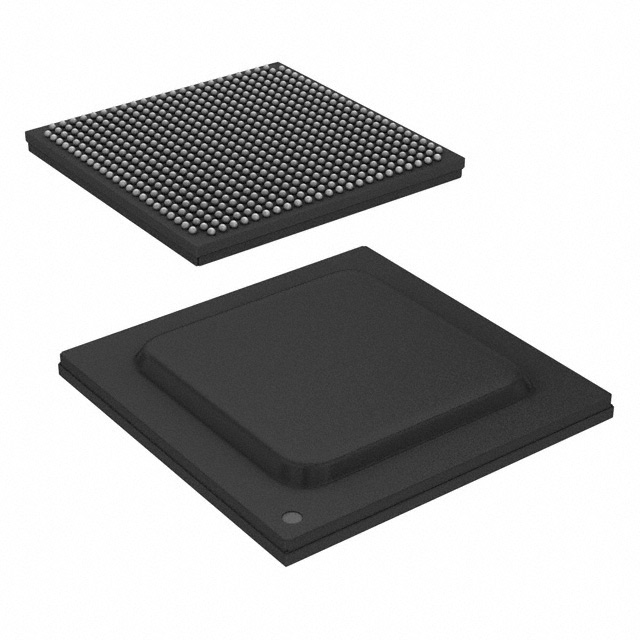

* 621 FC-BGA 17 mm x 17 mm, 0.65 mm pitch
