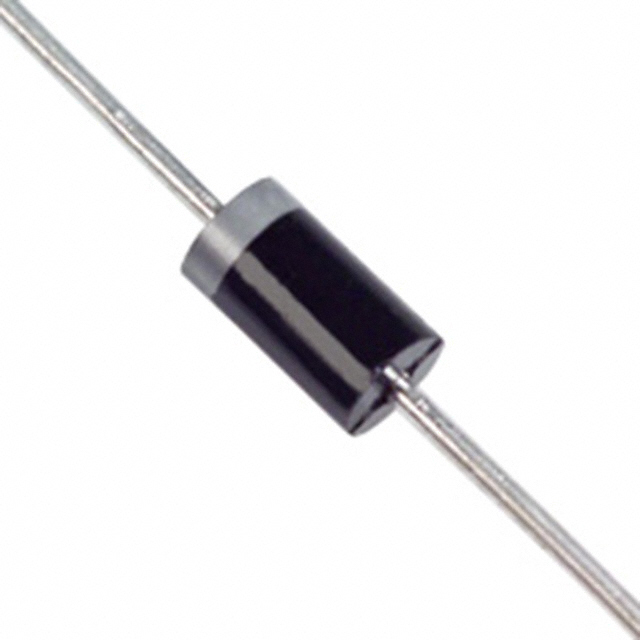

Diode TVS Single Bi-Dir 214V 600W 2Pin DO-15 T/R
Protect your electronic equipment from sudden or momentary overvoltage conditions with this TVS diode from Zetex. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. Its maximum leakage current is 5 μA. This device"s maximum clamping voltage is 344 V and minimum breakdown voltage is 237 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
额定功率 600 W
击穿电压 237 V
电路数 1
钳位电压 344 V
最大反向电压（Vrrm） 214V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 237 V
击穿电压 237 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 DO-15
长度 7.6 mm
封装 DO-15
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
P6KE250CA-T Diodes 美台 | 当前型号 | 当前型号 |
P6KE250CA-B 美台 | 类似代替 | P6KE250CA-T和P6KE250CA-B的区别 |
P6KE250CA Diotec Semiconductor | 类似代替 | P6KE250CA-T和P6KE250CA的区别 |
P6KE250CA-TP 美微科 | 类似代替 | P6KE250CA-T和P6KE250CA-TP的区别 |
