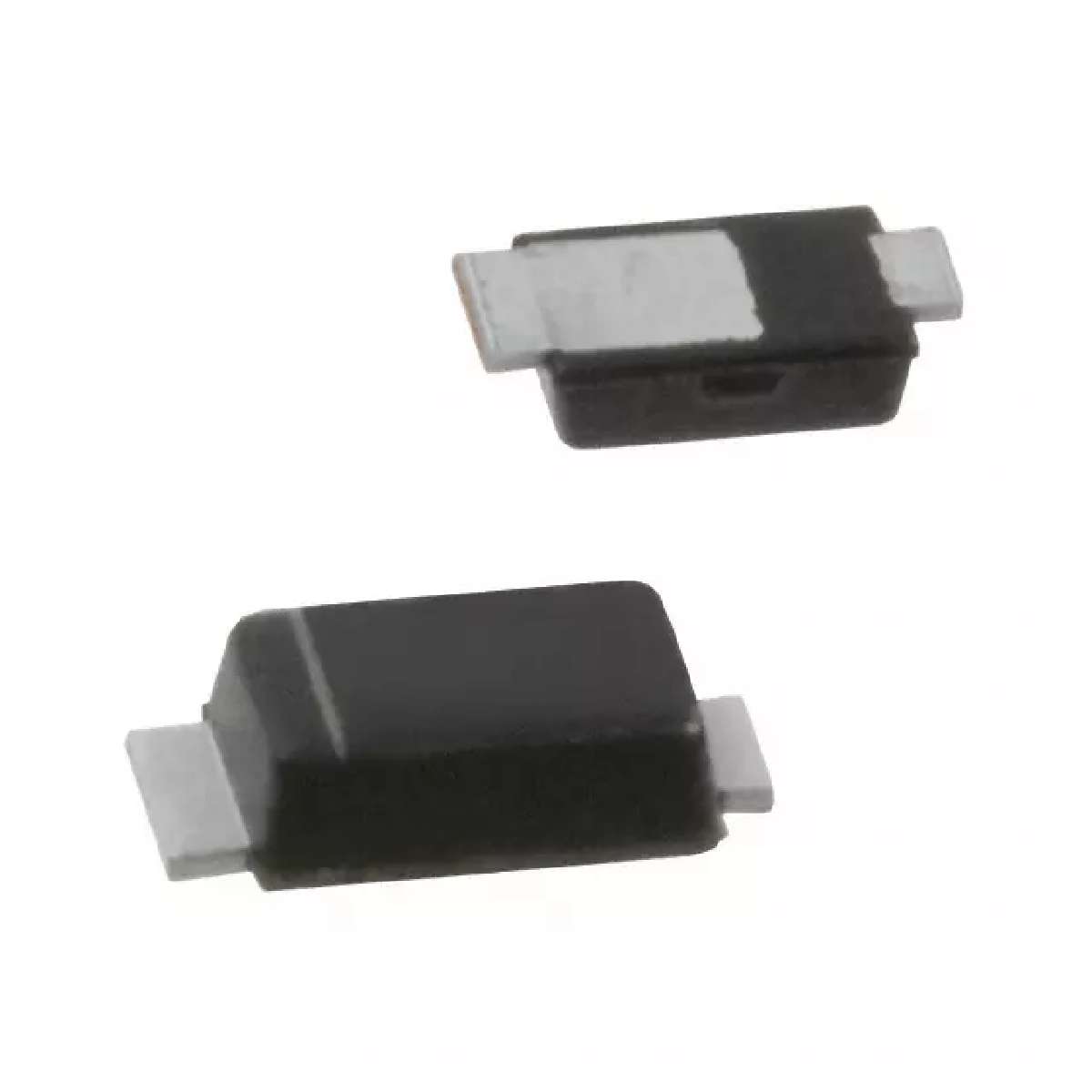

稳压二极管 500MW 10V
This zener diode from Zetex is perfect for blocking a voltage. Its test current is 5 mA. Its maximum power dissipation is 500 mW. Its maximum leakage current is 0.2 μA. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration. This zener device has a nominal voltage of 10 V and a voltage tolerance of 6%.
额定电压DC 10.0 V
容差 ±6 %
额定功率 500 mW
正向电压 1.1V @100mA
耗散功率 500 mW
测试电流 5 mA
稳压值 10 V
正向电压Max 1.1V @100mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2

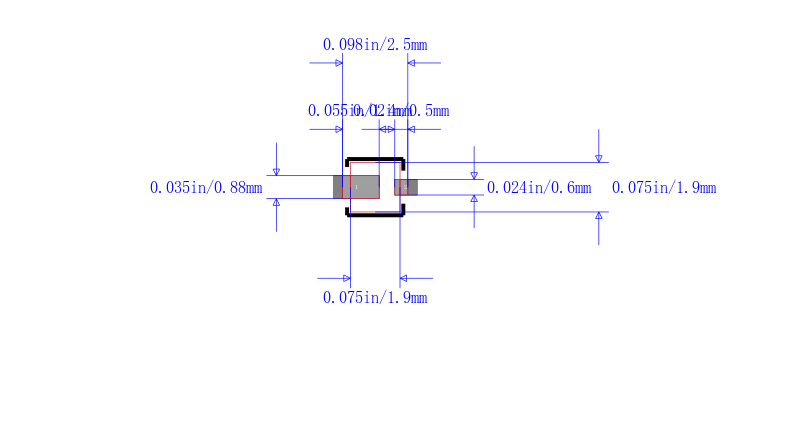

封装 PowerDI™ 323
长度 1.9 mm
宽度 1.25 mm
高度 0.65 mm
封装 PowerDI™ 323
工作温度 -65℃ ~ 150℃
温度系数 6.25 mV/℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PD3Z284C10-7 Diodes 美台 | 当前型号 | 当前型号 |
PD3Z284C9V1-7 美台 | 类似代替 | PD3Z284C10-7和PD3Z284C9V1-7的区别 |
