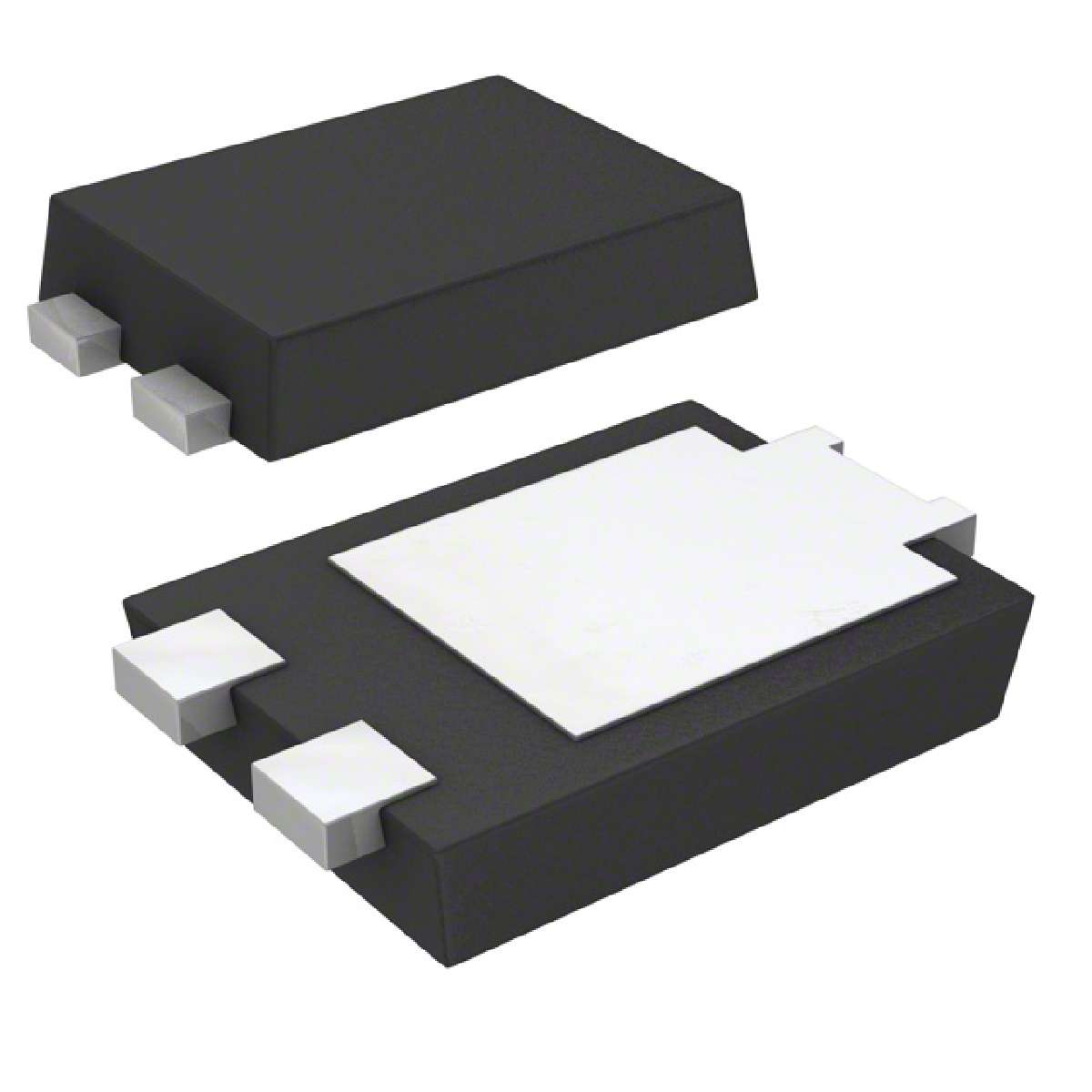

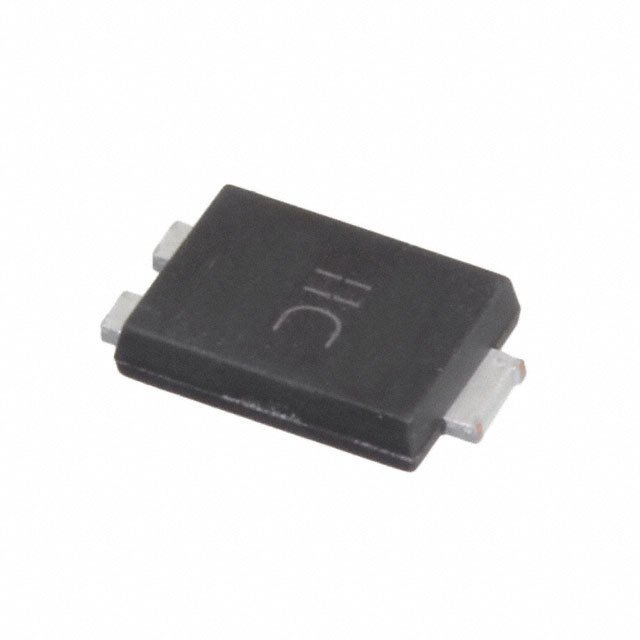

PDU420 系列 4 A 200 V 表面贴装 超快恢复 整流器 - 功率DI-5
标准 200 V 4A 表面贴装型 PowerDI™ 5
得捷:
DIODE GEN PURP 200V 4A POWERDI5
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode PDU420-13 rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its peak non-repetitive surge current is 125 A, while its maximum continuous forward current is 4 A. This rectifier has an operating temperature range of -65 °C to 175 °C. It is made in a single dual anode configuration.
安富利:
Diode Switching 200V 4A 3-Pin2+Tab PowerDI 5 T/R
Chip1Stop:
Diode Switching 200V 4A 3-Pin2+Tab PowerDI 5 T/R
Verical:
Rectifier Diode Switching 200V 4A 25ns 3-Pin3+Tab PowerDI 5 T/R
Win Source:
DIODE GEN PURP 200V 4A POWERDI5
额定电压DC 200 V
额定电流 4.00 A
输出电流 ≤4.00 A
正向电压 890mV @4A
极性 Standard
热阻 85 ℃/W
反向恢复时间 25 ns
正向电流 4 A
正向电压Max 890mV @4A
正向电流Max 4 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 3
封装 POWERDI-5
长度 4.05 mm
宽度 5.45 mm
高度 1.15 mm
封装 POWERDI-5
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
