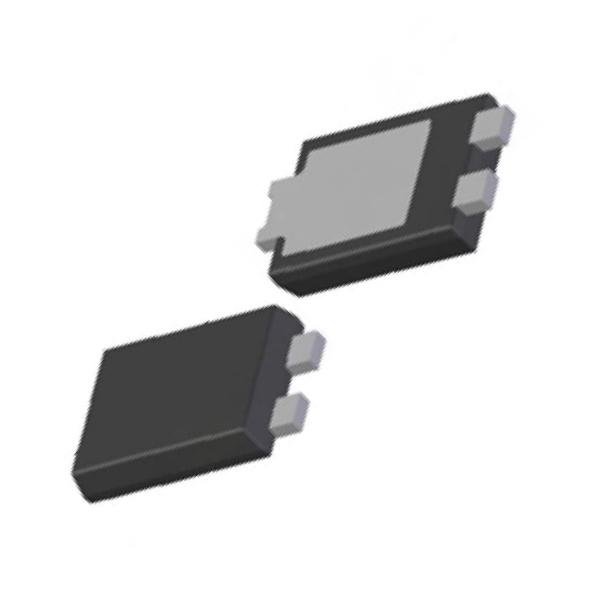

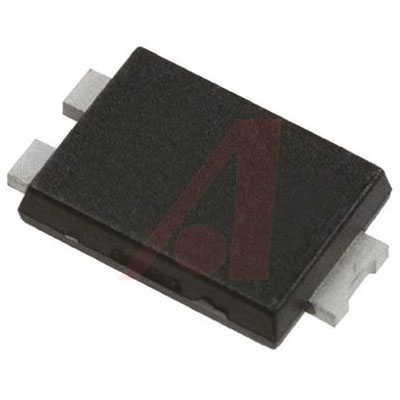

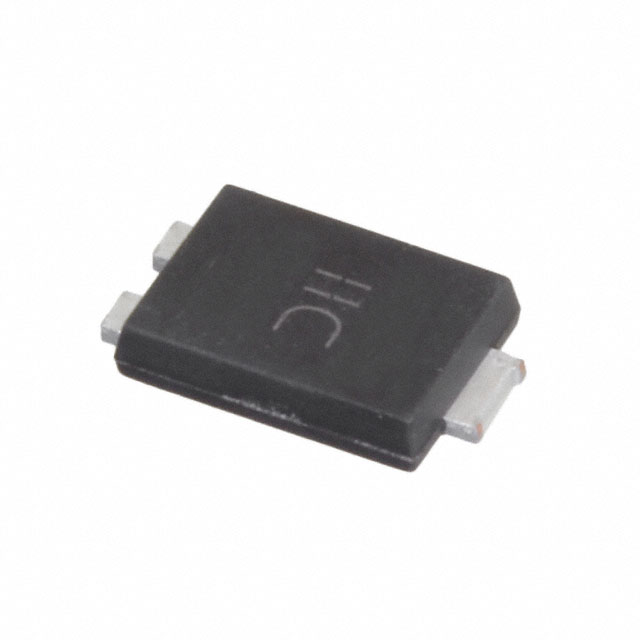

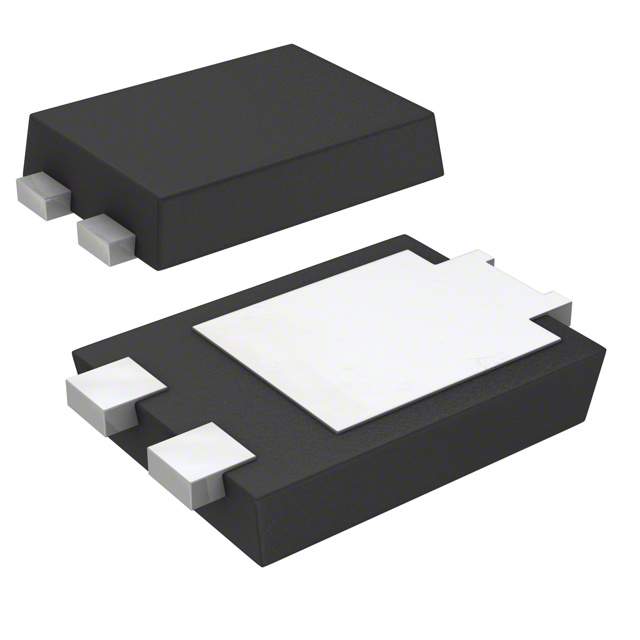

PDS540 系列 40 V 5 A 表面贴装 肖特基 势垒 整流器 - PowerDI-5
PDS540 Series 40 V 5 A Surface Mount Schottky Barrier Rectifier - PowerDI-5
得捷:
DIODE SCHOTTKY 40V 5A POWERDI5
立创商城:
40V 5A 520mV@5A
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode PDS540-13 rectifier from Diodes Zetex. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It is made in a single dual anode configuration. Its peak non-repetitive surge current is 150 A, while its maximum continuous forward current is 5 A. This rectifier has an operating temperature range of -65 °C to 150 °C.
Allied Electronics:
Diode Schottky 40V 5A 3Pin PowerDI 5
安富利:
Diode Schottky 40V 5A 3-Pin2+Tab PowerDI 5 T/R
富昌:
PDS540 系列 40 V 5 A 表面贴装 肖特基 势垒 整流器 - PowerDI-5
Chip1Stop:
Diode Schottky 40V 5A Automotive 3-Pin3+Tab PowerDI 5 T/R
Verical:
Rectifier Diode Schottky 40V 5A 3-Pin3+Tab PowerDI 5 T/R
儒卓力:
**SCHOTTKY-DIODE 40V 5A POWERDI5 **
Win Source:
DIODE SCHOTTKY 40V 5A POWERDI5
额定电压DC 40.0 V
额定电流 5.00 A
输出电流 ≤5.00 A
正向电压 520mV @5A
极性 Standard
反向恢复时间 1 ns
正向电流 5 A
最大正向浪涌电流(Ifsm) 150 A
正向电压Max 520 mV
正向电流Max 5 A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 3
封装 POWERDI-5
长度 4.05 mm
宽度 5.45 mm
高度 1.15 mm
封装 POWERDI-5
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PDS540-13 Diodes 美台 | 当前型号 | 当前型号 |
PDS540-13D 美台 | 功能相似 | PDS540-13和PDS540-13D的区别 |
