P6KE33CA-T

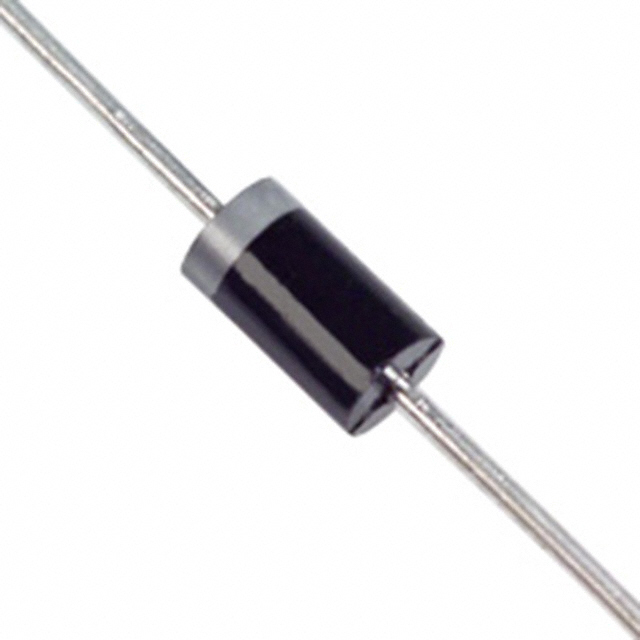

P6KE 系列 33 V 600 W 通孔 双向 TVS 二极管 - DO-15

Features

• 600W Peak Pulse Power Dissipation

• Voltage Range 6.8V - 400V

• Constructed with Glass Passivated Die

• Uni- and BidirectionalVersions Available

• Excellent Clamping Capability

• Fast Response Time

立创商城:
双向 Vrwm:28.2V

得捷:
TVS DIODE 28.2VWM 45.7VC DO15

贸泽:
TVS Diodes - Transient Voltage Suppressors 600W 28.20V

艾睿:
This P6KE33CA-T TVS diode from Diodes Zetex is a must-have if your electronic equipment may be exposed to overvoltage conditions. This device&s;s maximum clamping voltage is 45.7 V and minimum breakdown voltage is 31.4 V. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. Its maximum leakage current is 5 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.

安富利:
Diode TVS Single Bi-Dir 28.2V 600W 2-Pin DO-15 T/R

Chip1Stop:
Diode TVS Single Bi-Dir 28.2V 600W 2-Pin DO-15 T/R

Verical:
Diode TVS Single Bi-Dir 28.2V 600W Automotive 2-Pin DO-15 T/R

Win Source:
TVS DIODE 28.2VWM 45.7VC DO15 / 45.7V Clamp 13.2A Ipp Tvs Diode Through Hole DO-15
