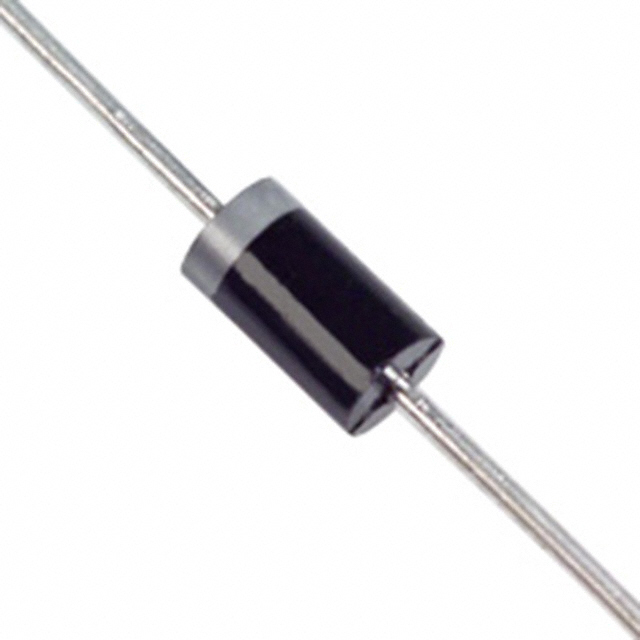

P6KE15A-T

P6KE 系列 600 W 15 V 单向 通孔 TVS 二极管 - DO-204AC

Features

• 600W Peak Pulse Power Dissipation

• Voltage Range 6.8V - 400V

• Constructed with Glass Passivated Die

• Uni- and BidirectionalVersions Available

• Excellent Clamping Capability

• Fast Response Time

得捷:
TVS DIODE 12.8VWM 21.2VC DO15

贸泽:
ESD 抑制器/TVS 二极管 600W 12.80V

艾睿:
Protect your electronic equipment from sudden or momentary overvoltage conditions with this P6KE15A-T TVS diode from Diodes Zetex. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 21.2 V and minimum breakdown voltage is 14.3 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.

安富利:
Diode TVS Single Uni-Dir 12.8V 600W 2-Pin DO-15 T/R

Chip1Stop:
Diode TVS Single Uni-Dir 12.8V 600W 2-Pin DO-15 T/R
