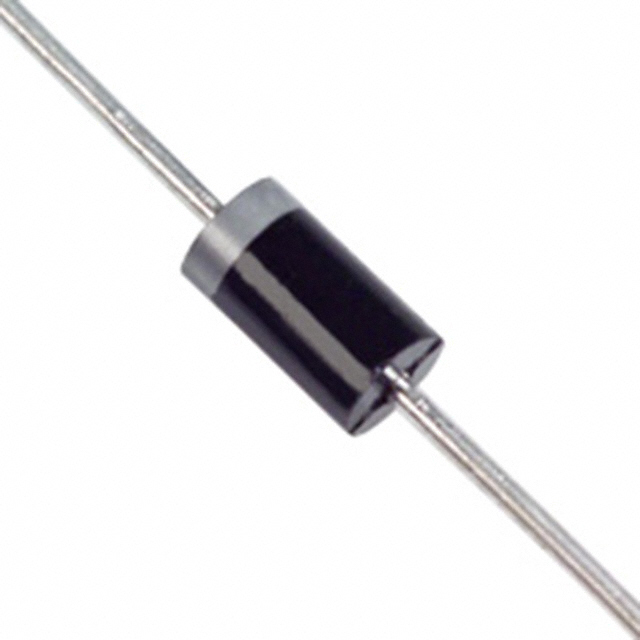

P6KE220A-T

ESD 抑制器/TVS 二极管 600W 185.00V

Features

• 600W Peak Pulse Power Dissipation

• Voltage Range 6.8V - 400V

• Constructed with Glass Passivated Die

• Uni- and BidirectionalVersions Available

• Excellent Clamping Capability

• Fast Response Time

得捷:
TVS DIODE 185VWM 328VC DO15

立创商城:
Vrwm:185V 600W

贸泽:
ESD 抑制器/TVS 二极管 600W 185.00V

艾睿:
This P6KE220A-T TVS diode from Diodes Zetex protects against overvoltages. This device&s;s maximum clamping voltage is 328 V and minimum breakdown voltage is 209 V. Its test current is 1 mA. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 600 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

安富利:
Diode TVS Single Uni-Dir 185V 600W 2-Pin DO-15 T/R
