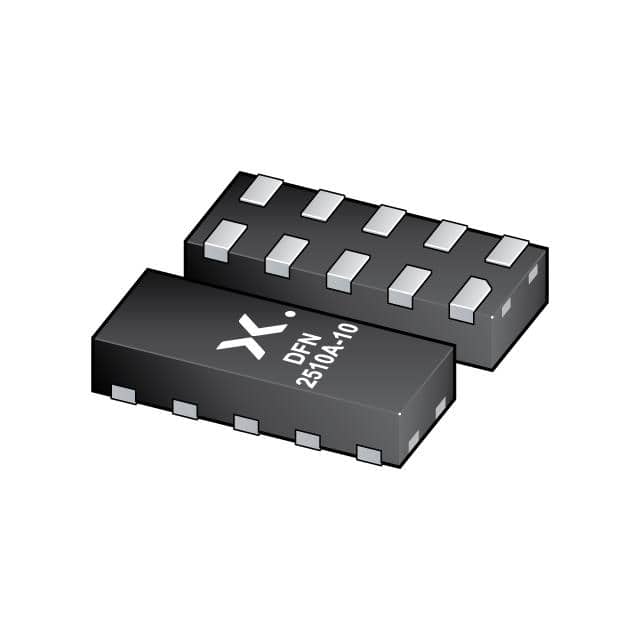

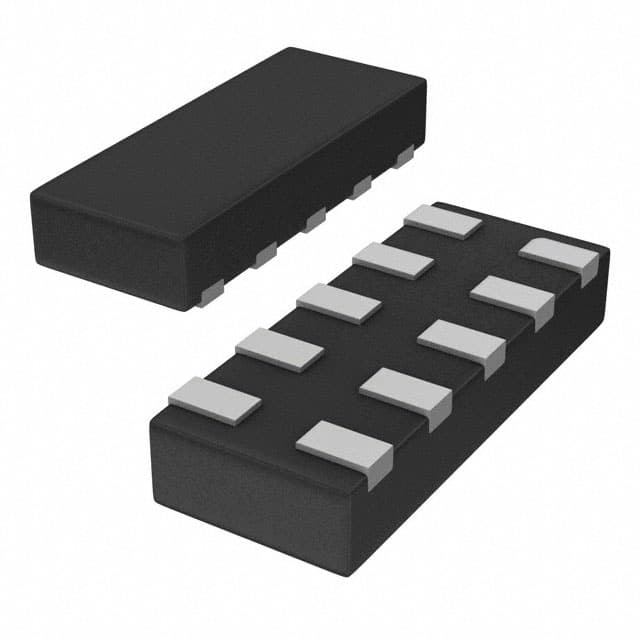

静电保护装置, 5 V, DFN2510A, 10 引脚, 5 V
PHDMI ESD protection for Ultra High-speed interfaces. The device is designed to protect high-speed video interfaces such as High-Definition Multimedia Interface HDMI and DisplayPort interfaces against ElectroStatic Discharge ESD. The device includes four high-level ESD protection diode structures. They protect sensitive transmitters and receivers for ultra high-speed signal lines. The device is encapsulated in a leadless small DFN2510A-10 SOT1176-1 plastic package. All signal lines are protected by a special diode configuration offering ultra low line capacitance. These diodes utilize a snap-back structure in order to provide protection to downstream components from ESD voltages up to ±15 kV contact exceeding IEC 61000-4-2, level 4.
