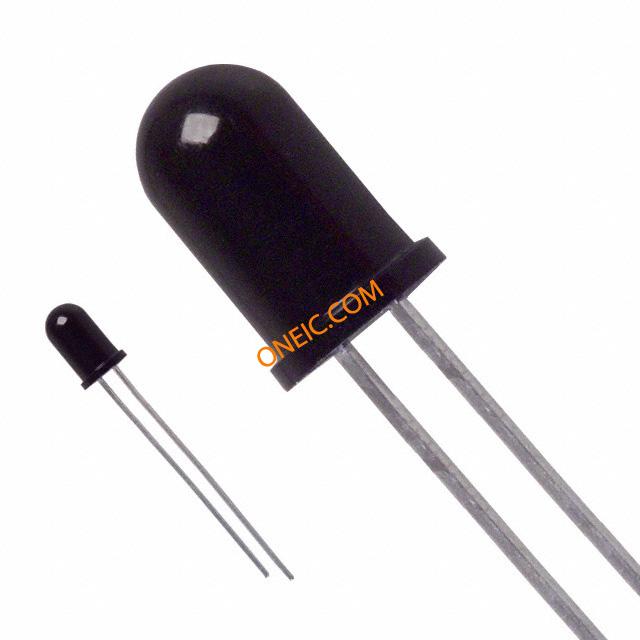

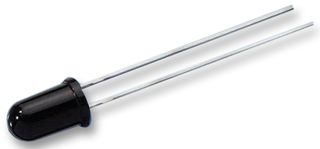

FAIRCHILD SEMICONDUCTOR QSD123.. 光电开关
The is a NPN Silicon Infrared Phototransistor is suitable for QED12X/QED22X/QED23X notched emitter. It has 24° narrow reception angle and a daylight filter. Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability.
- .
- High sensitivity
电源电压DC 5.00 V
额定电压DC 30.0 V
工作电压 5.00 V
击穿电压 30.0 V
针脚数 2
波长 880 nm
视角 24°
峰值波长 880 nm
极性 NPN
耗散功率 100 mW
功耗 100 mW
上升时间 7000 ns
击穿电压集电极-发射极 30 V
额定功率Max 100 mW
下降时间 7 µs
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 2
封装 T-1
长度 6.1 mm
宽度 6.1 mm
高度 8.77 mm
封装 T-1
材质 Silicon
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
QSD123 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
