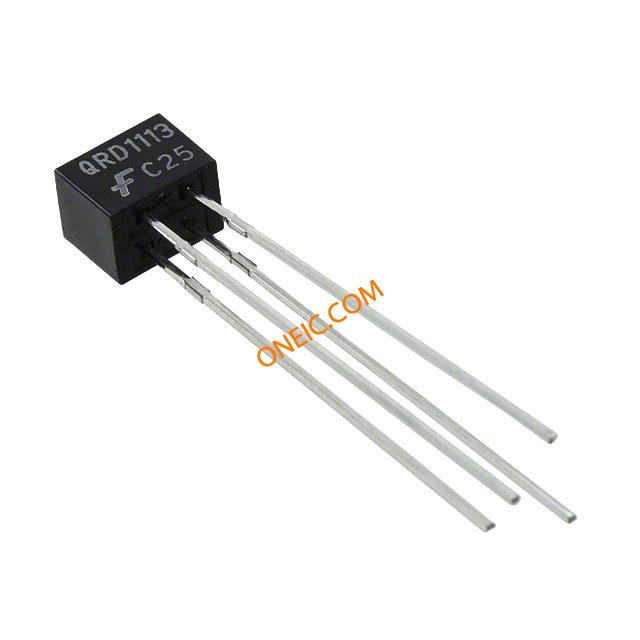

FAIRCHILD SEMICONDUCTOR QRD1113 光电开关, 反射型
The is a 1.27mm Reflective Object Sensor with an infrared emitting diode and an NPN silicon phototransistor mounted side by side in a black plastic housing. The on-axis radiation of the emitter and the on-axis response of the detector are both perpendicular to the face. The phototransistor responds to radiation emitted from the diode only when a reflective object or surface is in the field of view of the detector.
- .
- No-contact surface sensing
- .
- Unfocused for sensing diffused surfaces
- .
- Daylight filter on sensor
- .
- -40 to 85°C Operating temperature range
电源电压DC 1.70 V
额定电压DC 30.0 V
工作电压 1.70 V
输出电压 30.0 V, 30.0 V max
通道数 1
正向电压 1.7 V
波长 940 nm
输入电流 20.0 mA
峰值波长 940 nm
耗散功率 100 mW
上升时间 10000 ns
击穿电压集电极-发射极 30 V
正向电流 50 mA
击穿电压 5 V
正向电流Max 50 mA
下降时间 50 µs
下降时间Max 50000 ns
上升时间Max 10000 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 4
封装 PCB Mount
长度 6.1 mm
宽度 4.39 mm
高度 4.65 mm
封装 PCB Mount
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
QRD1113 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
