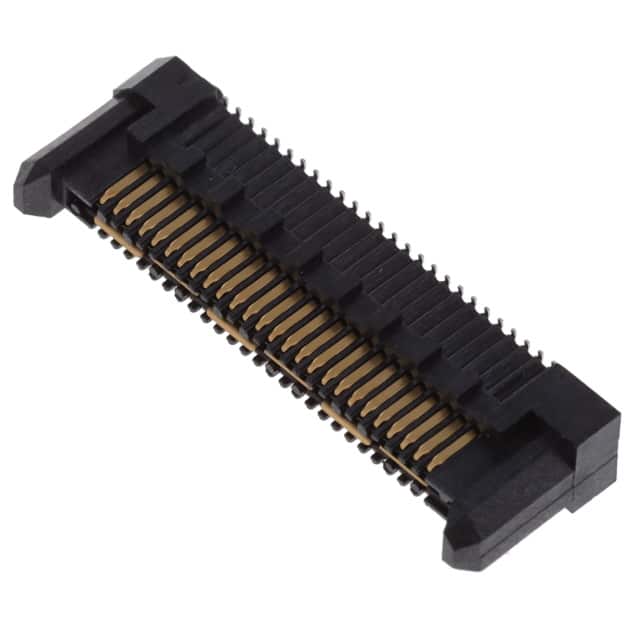

QRM8-026-05.0-L-D-A-GP

QRM8 Series Slim Body Ground Plane HeadersThese Board to Board QRM8 Series connectors have 0.25 μm Gold plated contacts with Tin plated Tails. This range of Board to Board QRM8 Series connectors are available: with and without Guide Posts, straight or right angle, 2, 5 or 7 mm body heights. Alignment Pins are included in this rangeThe design of the Board to Board QRM8 Series connector includes samtec"s Edge Rate contacts.QRM8-xxx-**02.0**-x-x-x-xx have a Body height of 2 mm QRM8-xxx-**07.0**-x-x-x-xx have a Body height of 7 mm QRM8-xxx-xx.x-x-x-x-**GP** have Guide Posts QMR8-xxx-xx-x-**RA-GP** have a horizontal orientation with Guide Posts ### 注Mates with QRF8 Series Sockets see stock number 767-7082 typical. Guide Post versions require Guide Post mating articles.### 0.8mm 板对板 - Samtec兼容性表 --- 系列名称 | 配接对象 BSE | BTE CLE | FTE QSE | QTE ERF8 | ERM8 QRF8 | QRM8 额定电流 | BSE、BTE、QTE 和 QSE 系列：2A CLE 和 FTE 系列：0.75A ---|--- 触点材料 | BSE、BTE、QTE、QSE 和 FTE 系列：磷青铜 CLE 系列：铍铜 触点电镀 | 金 工作温度范围 | -65°C → +125°C

QRM8 Series Slim Body Ground Plane Headers

These Board to Board QRM8 Series connectors have 0.25 μm Gold plated contacts with Tin plated Tails. This range of Board to Board QRM8 Series connectors are available: with and without Guide Posts, straight or right angle, 2, 5 or 7 mm body heights. Alignment Pins are included in this rangeThe design of the Board to Board QRM8 Series connector includes samtec"s Edge Rate contacts.

.

*02.0**-x-x-x-xx have a Body height of 2 mm

.

*07.0**-x-x-x-xx have a Body height of 7 mm

.

*GP** have Guide Posts

.

*RA-GP** have a horizontal orientation with Guide Posts

### 注

Mates with QRF8 Series Sockets see stock number 767-7082 typical.

Guide Post versions require Guide Post mating articles.

### 0.8mm 板对板 -
