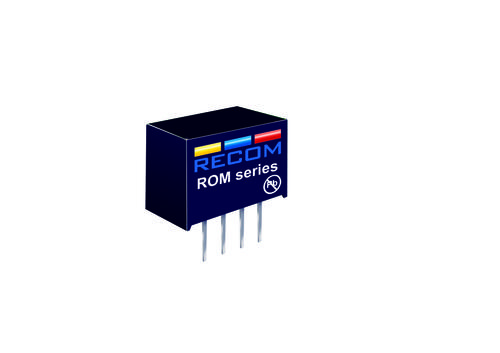

ROM-1215S

Module DC-DC 12Vin 1Out 15V 0.066A 1W Medical 4Pin SIP Tube

**Description**

The ROM Micro Size DC/DC converter has been designed for isolating or converting DC power rails where board height is at a premium. Although it has a micro-size 7.7 mm package, it does not compromise on features and offers a high 3 kVDC Isolation , a –40°C to +85°C operating temperature range and optional continuous short circuit protection.

**Features**

* Micro Size SIP4 Package

* 3 kVDC Isolation

* Approved for Medical Applications

* Industry Standard Pinout

* Optional Continuous Short Circuit Protected

* UL94V-0 Package Material

* Efficiency to 85%
