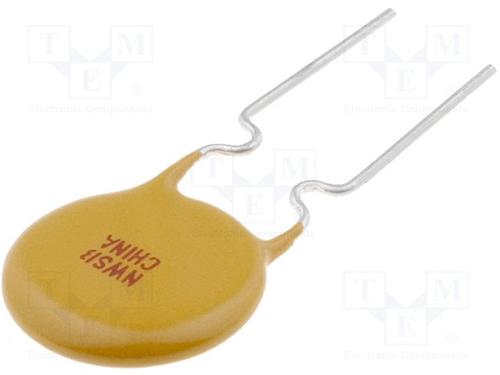

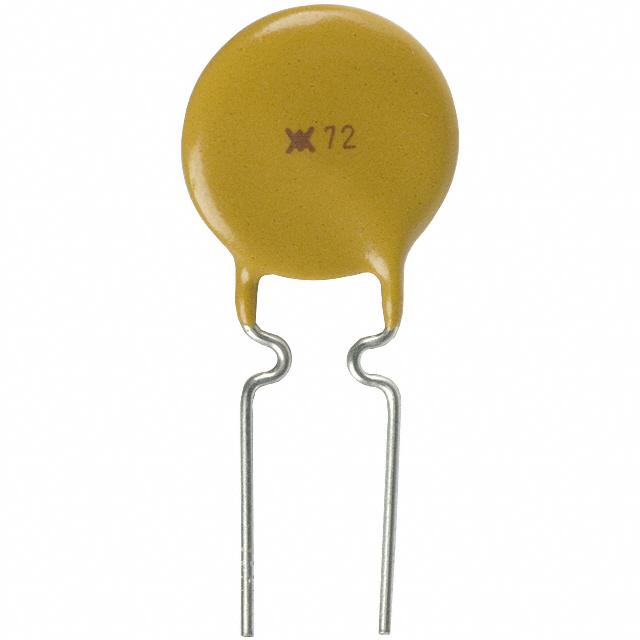

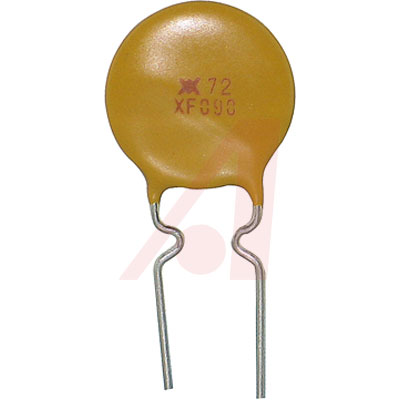

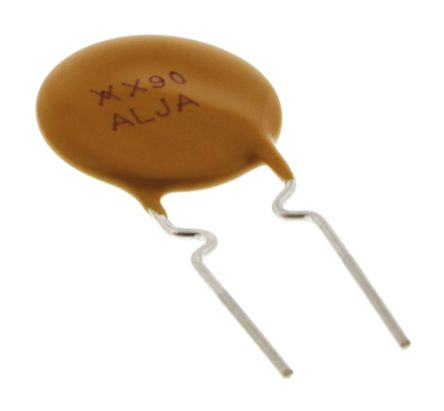

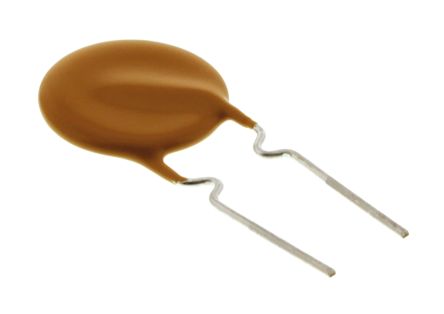

TE CONNECTIVITY / RAYCHEM RXEF090 自恢复保险丝 POLYSWITCH, 径向引线 0.9A

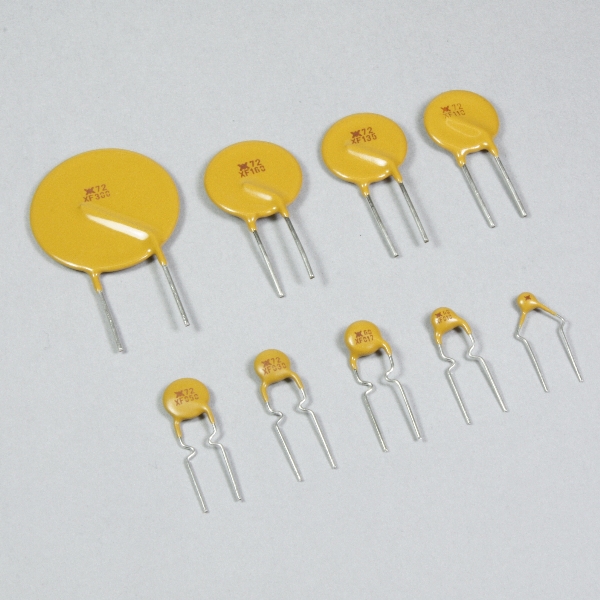

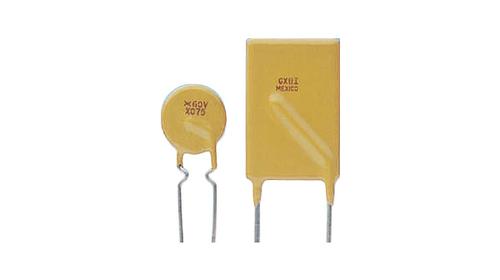

Tyco Electronics" PolySwitch™ radial-leaded products represent the most comprehensive and complete set of PPTC products available in the industry today.
**Benefits:**
* Many Product Choices Give Engineers More Design Flexibility
* Compatible with High-Volume Electronics Assembly
* Assists in Meeting Regulatory Requirements
* High Voltage Ratings Allow Use in New Applications
**Features:**
* For Low Hold Currents Down to 50 mA and High Voltage Ratings Up to 72 V
* Broadest Range of Radial-Leaded Resettable Devices Available in the Industry
* Current Ratings From 50 mA to 15 A
* Voltage Ratings From 6 VAC to 265 VAC Line Voltage Applications
* Agency Recognition: UL, CSA, TUV
* Fast Time-to-Trip
* Low Resistance
**
Applications:* Satellite Video Receivers
* Industrial Controls
* Transformers
* Computer Motherboards
* Modems
* USB Hub, Ports and Peripherals
* IEEE1394 Ports
* CD-ROMs
* Game Machines
* Battery Packs
* Phones
* Fax Machines
* Analog and Digital Line Cards
* Printers
额定电压DC 72.0 V
额定电压AC 72.0 V
工作电压 72 V
跳闸时间 7.2 s
额定电流 0.9 A
额定功率 990 mW
易燃性等级 UL 94 V-0
耗散功率 0.99 W
产品系列 RXEF
电阻 0.47 Ω
保持电流 0.9 A
跳闸电流 1.8 A
电阻DC) 0.47 Ω
额定电流Max 40 A
保持电流Max 900 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 72 V
额定电压 72 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
引脚间距 5.8 mm
长度 15.8 mm
宽度 3 mm
高度 15.8 mm
直径 11.2 mm
脚长度 7.60 mm
封装 Radial, Disc
引脚间距 5.8 mm
厚度 3 mm
电源线长度 7.6 m
产品生命周期 Active
包装方式 Bag
制造应用 消费电子产品, 工业, Automation & Process Control, 通信与网络, Industrial, Communications & Networking, 自动化与过程控制, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8533210090
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RXEF090 TE Connectivity 泰科 | 当前型号 | 当前型号 |
MF-R090 伯恩斯 | 功能相似 | RXEF090和MF-R090的区别 |
60R090XPR 力特 | 功能相似 | RXEF090和60R090XPR的区别 |
0ZRC0090FF1E 百富电子 | 功能相似 | RXEF090和0ZRC0090FF1E的区别 |
