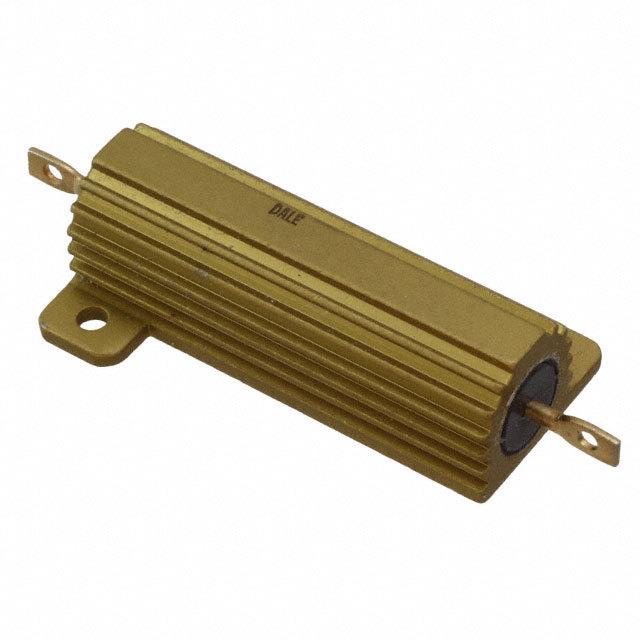

VISHAY RH0503R300FE02 通孔电阻器, RH系列, 3.3 ohm, 50 W, ± 1%
The is a through-hole heat-sink encased Wirewound Power Resistor with Sn/Ag/Cu solder lug terminations. It is encased in a compact and light heat-sink offering complete environmental protection, great mechanical strength and easy mounting. Non inductive versions can be supplied under the RHNI designation.
- .
- High stability <0.05% year
- .
- According to CECC 40 203
- .
- Low temperature coefficient typically ±15ppm/°C
容差 ±1 %
额定功率 50 W
电阻 3.3 Ω
阻值偏差 ±1 %
工作温度Max 250 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2
封装 -
长度 70.64 mm
宽度 28.96 mm
高度 15.49 mm
脚长度 11.13 mm
封装 -
工作温度 -55℃ ~ 250℃
温度系数 ±50 ppm/℃
包装方式 Bulk
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RH0503R300FE02 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
MC14742 Multicomp | 类似代替 | RH0503R300FE02和MC14742的区别 |
