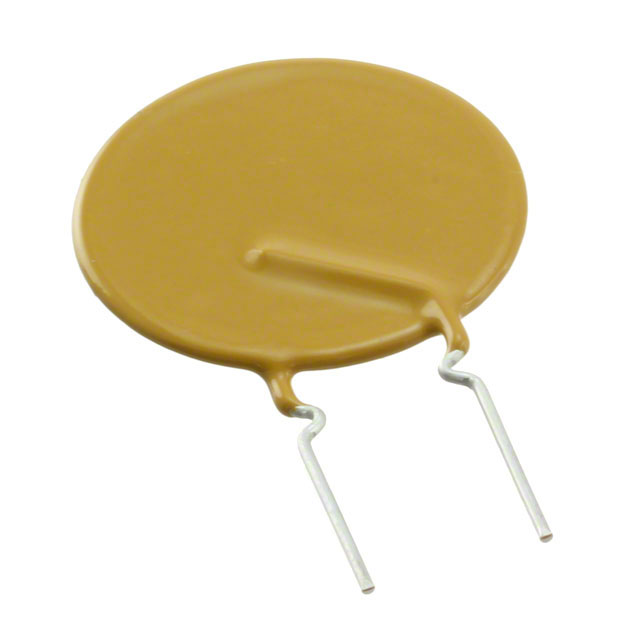

PTC Resettable Fuse 3.75Ahold 7.5Atrip 72V 40A 3.2W 24s 0.03Ω Radial 27.2 X 3mm Bag
PTC Resettable Fuse 3.75Ahold 7.5Atrip 72V 40A 3.2W 24s 0.03Ohm Radial 27.2 X 3mm Bulk
艾睿:
PTC Resettable Fuse 3.75Ahold 7.5Atrip 72V 40A 3.2W 24s 0.03Ohm Radial 27.2 X 3mm Bag
Chip1Stop:
PTC Resettable Fuse 3.75Ahold 7.5Atrip 72V 40A 3.2W 24s 0.03Ohm Radial 27.2 X 3mm Bag
Verical:
PTC Resettable Fuse 3.75Ahold 7.5Atrip 72VAC/72VDC 40A 3.2W 24s 0.03Ohm Radial 27.2 X 3mm Bag
MASTER:
PTC Resettable Fuse 3.75Ahold 7.5Atrip 72V 40A 3.2W 24s 0.03Ohm Radial 27.2 X 3mm Bulk
Online Components:
PTC Resettable Fuse 3.75Ahold 7.5Atrip 72V 40A 3.2W 24s 0.03Ohm Radial 27.2 X 3mm Bulk
Electro Sonic:
PTC Resettable Fuse 3.75Ahold 7.5Atrip 72V 40A 3.2W 24s 0.03Ohm Radial 27.2 X 3mm Bulk
工作电压 72.0 V
额定电流 40.0 A
耗散功率 3.2 W
电阻 0.08 Ω
保持电流 3.75 A
跳闸电流 7.5 A
额定电流Max 40 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 72 V
安装方式 Radial
引脚数 2
封装 Radial, Disc
长度 27.2 mm
宽度 3 mm
高度 27.2 mm
封装 Radial, Disc
厚度 3 mm
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8533408070;8536100040
