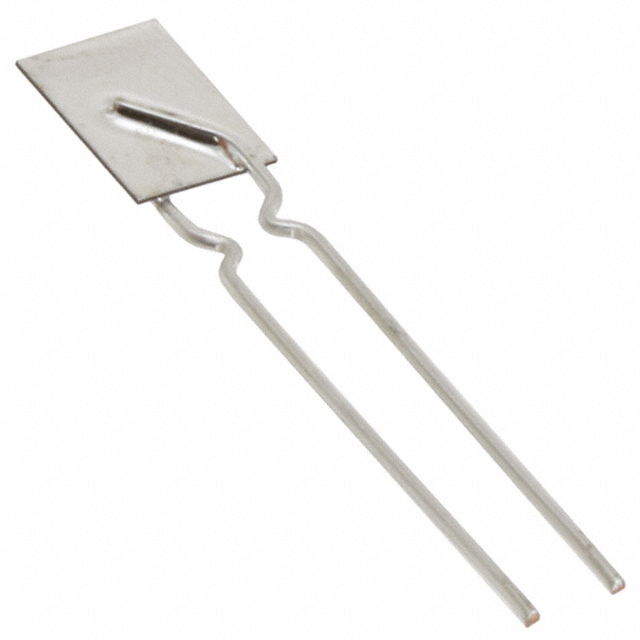

PTC Resettable Fuse 2.5Ahold 5Atrip 30V 100A 1.2W 10.3s 0.02Ω Radial 11.4 X 3 X 18.3mm T/R
PTC Resettable Fuse 2.5Ahold 5Atrip 30V 100A 1.2W 10.3s 0.02Ohm Radial 11.4 X 3 X 18.3mm T/R
艾睿:
PTC Resettable Fuse 2.5Ahold 5Atrip 30VAC/30VDC 100A 1.2W 10.3s 0.02Ohm Radial 11.4 X 3 X 18.3mm T/R
Chip1Stop:
PTC Resettable Fuse 2.5Ahold 5Atrip 30V 100A 1.2W 10.3s 0.02Ohm Radial 11.4 X 3 X 18.3mm T/R
Verical:
PTC Resettable Fuse 2.5Ahold 5Atrip 30VAC/30VDC 100A 1.2W 10.3s 0.02Ohm Radial 11.4 X 3 X 18.3mm T/R
MASTER:
PTC Resettable Fuse 2.5Ahold 5Atrip 30V 100A 1.2W 10.3s 0.02Ohm Radial 11.4 X 3 X 18.3mm T/R
Online Components:
PTC Resettable Fuse 2.5Ahold 5Atrip 30V 100A 1.2W 10.3s 0.02Ohm Radial 11.4 X 3 X 18.3mm T/R
Electro Sonic:
PTC Resettable Fuse 2.5Ahold 5Atrip 30V 100A 1.2W 10.3s 0.02Ohm Radial 11.4 X 3 X 18.3mm T/R
额定电压DC 30.0 V
工作电压 30 VDC
跳闸时间 5 s
额定电流 2.50 A
耗散功率 1.2 W
电阻 0.07 Ω
保持电流 2.5 A
跳闸电流 5 A
额定电流Max 100 A
保持电流Max 2.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 V
安装方式 Radial
引脚数 2
封装 Radial, Disc
长度 11.4 mm
宽度 3 mm
高度 18.3 mm
封装 Radial, Disc
厚度 3 mm
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
