\+ 5V精密电压参考/温度Trangsducer +5V Precision Voltage Reference/Temperature Trangsducer
GENERAL DESCRIPTION
The REF02 precision voltage reference providesa stable5 V output that can be adjustedover a ±6% range with minimal effect on temperature stability. Single-supply operation over an input voltage range of7 V to40 V,low current drain of1 mA, and excellent temperature stability are achieved with an improved band gap design. Low cost, low noise,and low power make the REF02 anexcellent choice when ever a stable voltage reference is required. Applications include DACs and ADCs, portable instrumentation, and digital volt meters. The versatility ofthe REF02 is enhanced byits use as a monolithic temperature transducer. For new designs, refer to the ADR02.
FEATURES
5 V output: ±0.3% maximum
Temperature voltage output: 1.96 mV/°C
Adjustmentrange: ±3%minimum
Excellent temperature stability: 8.5 ppm/°C maximum
Low noise: 15µV p-p maximum
Low supply current: 1.4 mA maximum
Wide input voltage range: 7 V to 40 V
Highload-drivingcapability: 10 mA
No external components
Short-circuit proof
额定电流 1.4 mA
容差 ±1 %
输入电压DC 40.0V max
输出电压 5 V
输出电流 10 mA
供电电流 1.6 mA
通道数 1
输入电压Max 40 V
输出电压Max 5 V
输出电压Min 5 V
精度 ±1 %
输入电压 7V ~ 40V
安装方式 Through Hole

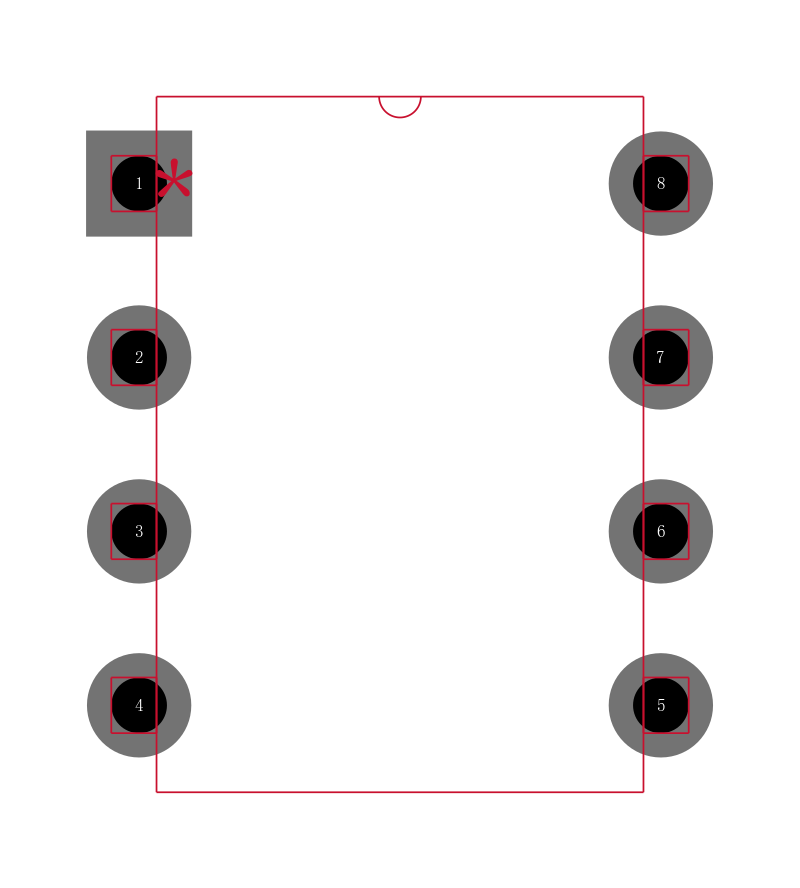

引脚数 8

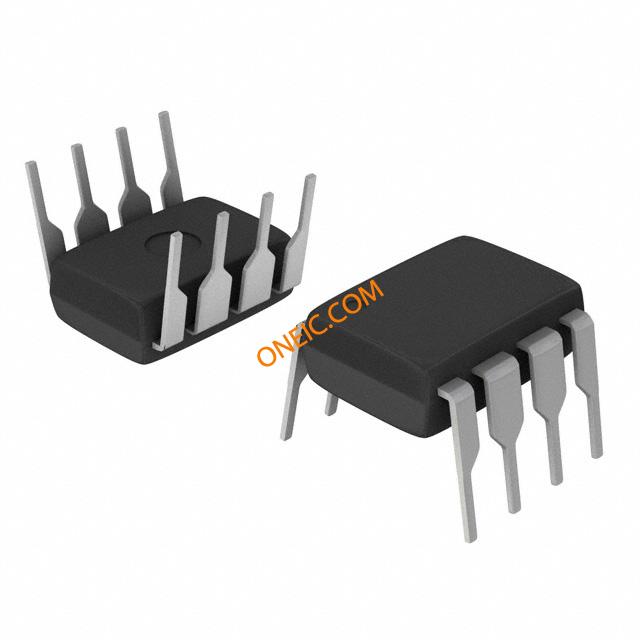

封装 DIP-8
封装 DIP-8
工作温度 -40℃ ~ 85℃
温度系数 ±65 ppm/℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REF02CP ADI 亚德诺 | 当前型号 | 当前型号 |
REF02CPZ 亚德诺 | 类似代替 | REF02CP和REF02CPZ的区别 |
REF02AP 德州仪器 | 功能相似 | REF02CP和REF02AP的区别 |
REF02BP 德州仪器 | 功能相似 | REF02CP和REF02BP的区别 |
