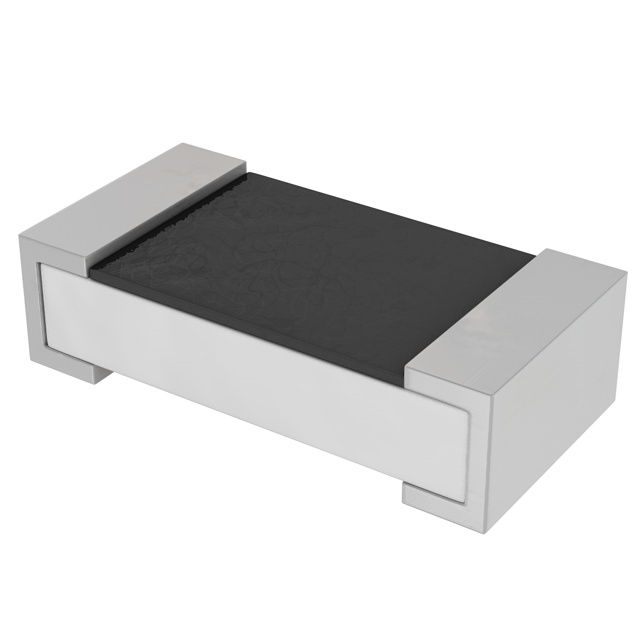

RC 系列 0603 0.1 W 6.8 Ohms 5% ±200 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
立创商城:
6.8Ω ±5% 100mW
得捷:
RES 6.8 OHM 5% 1/10W 0603
艾睿:
The RC0603JR-076R8L fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This product has a resistance value of 6.8 Ohm. This durable part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±200 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device utilizes thick film technology. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%.
富昌:
RC Series 0603 0.1 W 6.8 Ohms 5% ±200 ppm/°C SMT Thick Film Chip Resistor
Chip1Stop:
Res Thick Film 1.6 x 0.8 mm 6.8 Ohm 5% 0.1W1/10W 200ppm/ C Molded SMD Paper T/R
TME:

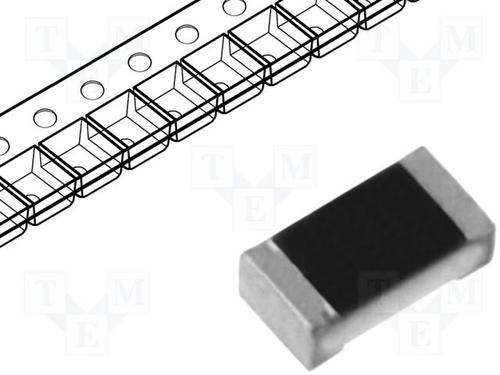

Resistor: thick film; SMD; 0603; 6.8Ω; 0.1W; ±5%; -55÷155°C
儒卓力:
**RC0603 6,8R 5% 0,1W TK200 **
额定电压DC 50.0 V
容差 ±5 %
额定功率 0.1 W
产品系列 RC
电阻 6.8 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±5 %
安装方式 Surface Mount
封装公制 1608
封装 0603

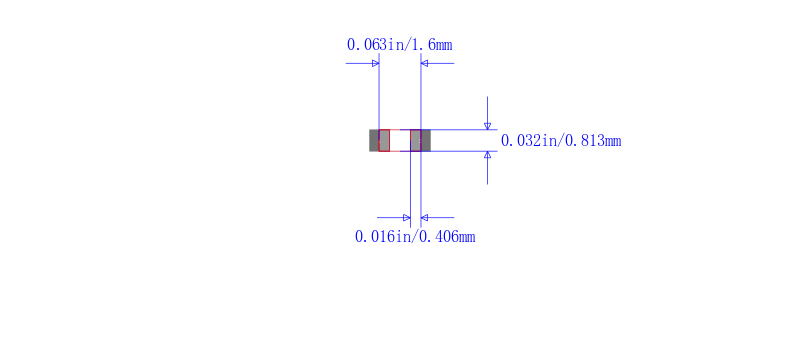

长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0603JR-076R8L Yageo 国巨 | 当前型号 | 当前型号 |
9C06031A6R80JGHFT 国巨 | 完全替代 | RC0603JR-076R8L和9C06031A6R80JGHFT的区别 |
CRCW06036R8J200RT1 Vishay Intertechnology | 功能相似 | RC0603JR-076R8L和CRCW06036R8J200RT1的区别 |
