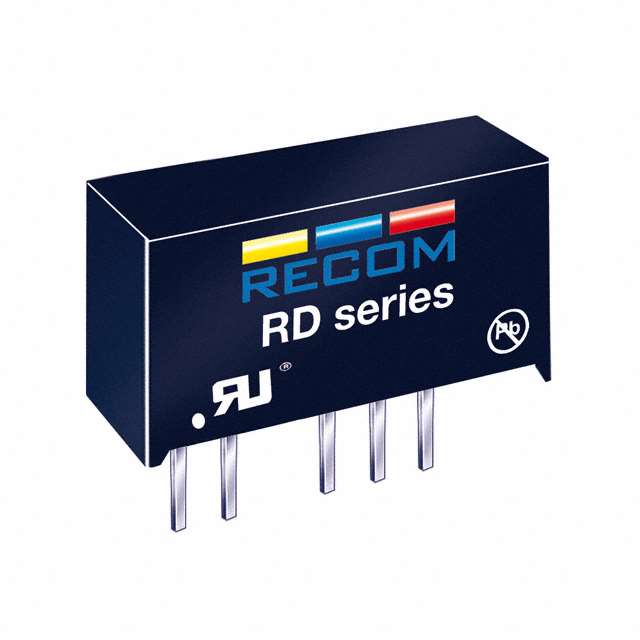

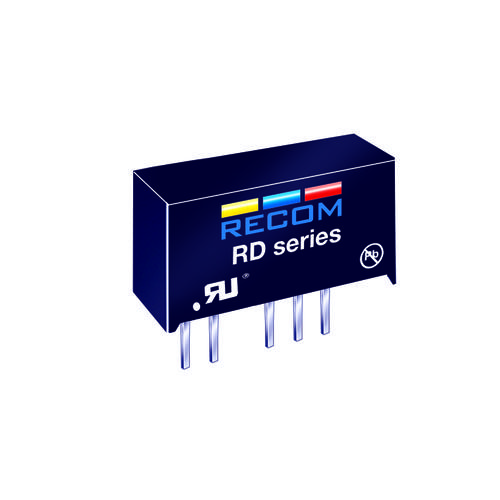

Module DC-DC 24Vin 2Out 12V/-12V 0.084A/-0.084A 2W 5Pin SIP Tube
Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 12|-12 V. This part has a temperature range of -40 °C to 85 °C. This device comes in tube packaging.
得捷:
DC DC CONVERTER +/-12V 2W
贸泽:
Isolated DC/DC Converters 2W DC/DC 1kV UNREG 24Vin +/-12Vout
艾睿:
Provide the ability to switch between voltages by using this step down RD-2412D/P DC to DC converter and switching regulator module. It has a voltage of 12|-12 V. This part has a temperature range of -40 °C to 85 °C. This device comes in tube packaging.
Chip1Stop:
Module DC-DC 24VIN 2-OUT 12V/-12V 0.084A/-0.084A 2W 5-Pin SIP Tube
Newark:
# RECOM POWER RD-2412D/P Isolated Board Mount DC/DC Converter, Medical, Fixed, 2 Output, 21.6 V, 26.4 V, 2 W, 12 V
电源电压DC 24.0 V
额定功率 2 W
输出接口数 2
输出电压 ±12 V
输出功率 2 W
隔离电压 1 kV
开关频率 34kHz ~ 85kHz
输入电压Max 26.4 V
输入电压Min 21.6 V
输入电压DC Max 26.4 V
输入电压DC Min 21.6 v
输出电流Max 84mA, 84mA
输出功率Max 2 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 24V ~ 24V
安装方式 Through Hole
引脚数 5
封装 SIP-7
长度 0.77 in
宽度 7.112 mm
高度 0.05 in
封装 SIP-7
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
