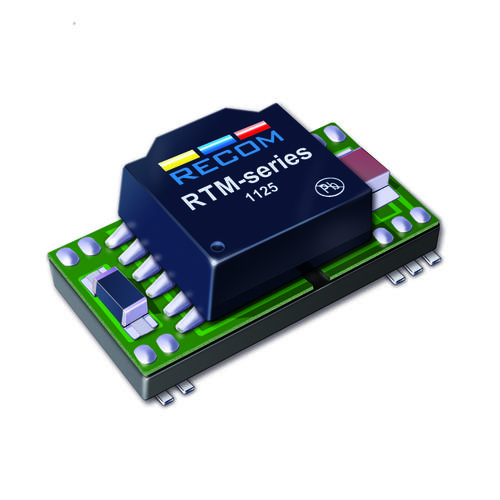

RECOM POWER RTM-0505S 直流/直流转换器 隔离式板载, 医用, 表面安装DIP, 固定, 表面安装设备, 2 W, 5 V, 400 mA
Recom ECONOLINE 2W SMD Unregulated Medical Isolated DC/DC Converter - RTM Series
ECONOLINE RTM series 2W SMD unregulated, isolated, single output DC/DC converters with a 1.1 input range and EN60601-1 medical approval. These SMD unregulated medical DC/DC converters have a high efficiency, a wide temperature range of -40 to +90°C and 2kVDC isolation.
1:1 input voltage range
EN60601-1 approved for medical applications
Up to 83% efficiency
2kVDC isolation
-40 to +90°C operating temperature range
### 注
MTBF: MIL-HDBK 217F 25%
For EMC compliance please see datasheet
### 标准
EN-60601-1, UL-60950-1
额定功率 2 W
输出接口数 1
输出电压 5 VDC
输出电流 400 mA
输出功率 2 W
隔离电压 2 kV
开关频率 80 kHz
输入电压Max 5.5 V
输入电压Min 4.5 V
输入电压DC Max 5.5 V
输入电压DC Min 4.5 v
输出电流Max 400 mA
输出功率Max 2 W
工作温度Max 90 ℃
工作温度Min -40 ℃
输入电压 4.5VDC ~ 5.5VDC
安装方式 Surface Mount
引脚数 10
封装 SMD
长度 18 mm
宽度 9 mm
高度 7.15 mm
封装 SMD
工作温度 -40℃ ~ 90℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业），医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
