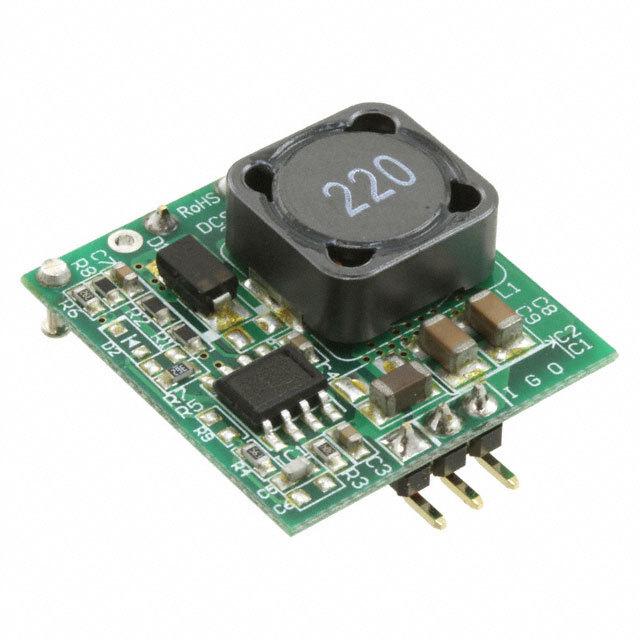

R-78T5.0-1.0/FC-TRAY

R-78T 系列 1 A 5 V 单输出 开放式 INNOLINE DC-DC 转换器

The from Recom Power is a R-78T series switching regulator with a wide input voltage range and a low profile SMD package. It has 5V output voltage and 1.5A start-up overload capability, the R-78T can be used to replace 1A or 1.5A regulators in many applications.

.

Input voltage is 8VDC to 42VDC

.

Maximum efficiency is 85%

.

No load input current is 1mA typical

.

±2% voltage accuracy, ±0.2% line regulation ±0.4% load regulation

.

Ripple & noise 20MHz limited is 50mVp-p typical / 100mVp-p maximum

.

Fixed switching frequency of 350KHz, shielded magnetics

.

Short circuit protection, current limit

.

Dimension is 23mm x 29.4mm x 8mm

.

Non-isolated regulator with very low standby current
