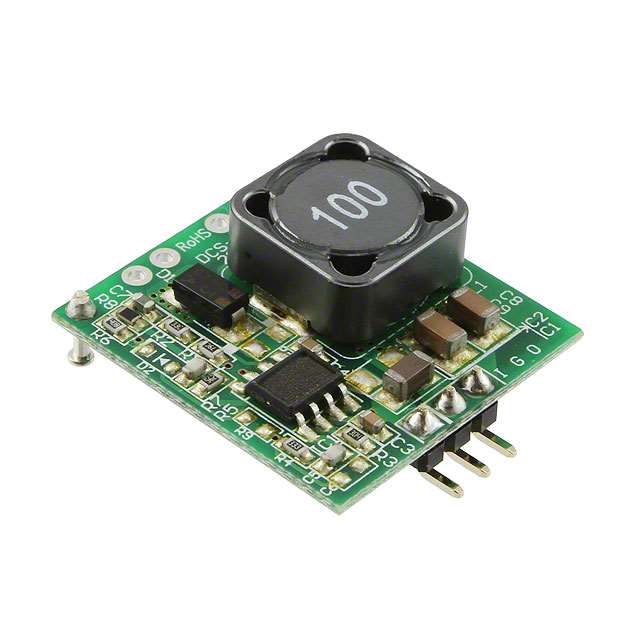

R-78T12-1.0/FC-TRAY

非隔离负载点直流/直流转换器, ITE, 1输出, 12 W, 12 V, 1 A, 固定, 表面安装设备

The from Recom Power is a R-78T series switching regulator with a wide input voltage range and a low profile SMD package. It has 12V output voltage and 1.5A start-up overload capability, the R-78T can be used to replace 1A or 1.5A regulators in many applications.

.

Input voltage is 15VDC to 42VDC

.

Maximum efficiency is 92%

.

No load input current is 1mA typical

.

±2% voltage accuracy, ±0.2% line regulation ±0.4% load regulation

.

Ripple & noise 20MHz limited is 50mVp-p typical / 100mVp-p maximum

.

Fixed switching frequency of 350KHz, shielded magnetics

.

Short circuit protection, current limit

.

Dimension is 23mm x 29.4mm x 8mm

.

Non-isolated regulator with very low standby current
