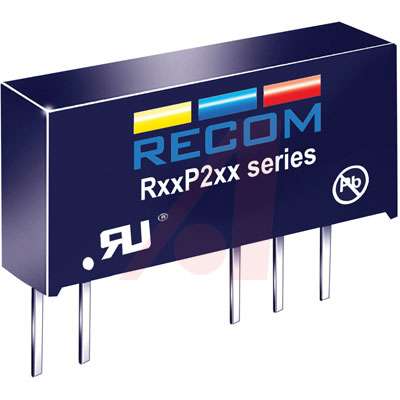

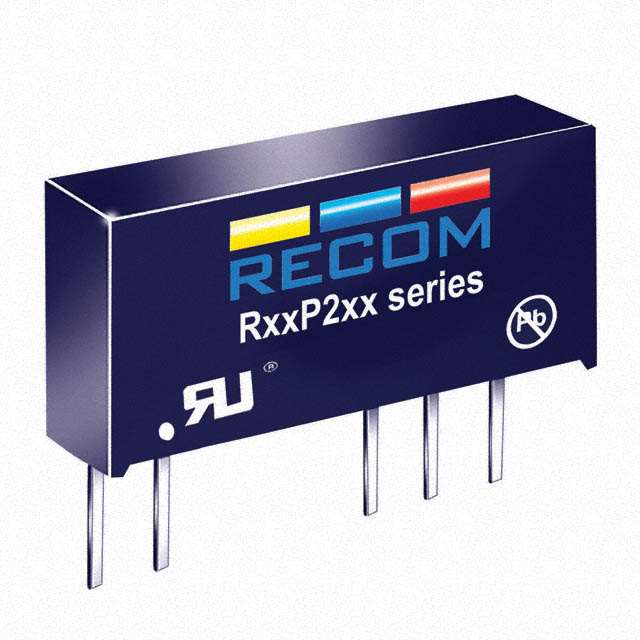

直流/直流转换器 隔离式板载, ITE & 医用, 2输出, 2 W, 15 V, 67 mA, -9 V, 111 mA
The new DC/DC converters have been designed to supply IGBT drivers. They provide an asymmetric output of +15VDC and –9 VDC with input voltages of 5 VDC, 12 VDC or 24 VDC. The converters offer high isolation and an extended operating temperature range.
* UL/CSA and EN Safety Certified
* EN-60601 for Medical Applications
* Isolation 6.4 kVDC
* Unique Transformer System Patent Pending
* Compact SIP7 Package
* /X2 Version with >9 mm Input/Output Clearance
* Suitable for IGBT Applications
* Very Low Isolation Capacitance
* Optional Continuous Short Circuit Protection
额定功率 1 W
输出接口数 2
输出功率 2 W
隔离电压 6.4 kV
输入电压Max 26.4 V
输入电压Min 21.6 V
输入电压DC Max 26.4 V
输入电压DC Min 21.6 v
输出电流Max 66mA, 111mA
输出功率Max 2 W
额定功率Max 1 W
工作温度Max 90 ℃
工作温度Min -40 ℃
输入电压 21.6VDC ~ 26.4VDC
安装方式 Through Hole
引脚数 5
封装 SIP-7
宽度 9.906 mm
高度 12.5 mm
封装 SIP-7
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE(商业),医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
