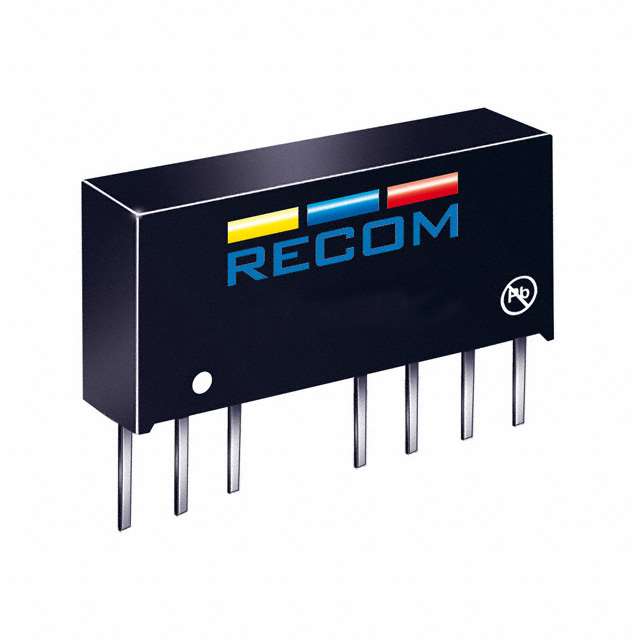

Module DC-DC 24Vin 1Out 5V 0.4A 2W Medical 7Pin SIP Tube
Isolated Module DC DC Converter 1 Output 5V 400mA 9V - 36V Input
得捷:
DC DC CONVERTER 5V 2W
艾睿:
Provide the ability to switch between voltages by using this step down RS-2405SZ/H2 DC to DC converter and switching regulator module. It has a voltage of 5 V. This part has a minimum operating temperature of -40 °C and a maximum of 75 °C. This device comes in tube packaging.
Newark:
# RECOM POWER RS-2405SZ/H2 Isolated Board Mount DC/DC Converter, Medical, Fixed, 1 Output, 9 V, 36 V, 2 W, 5 V
额定功率 2 W
输出接口数 1
输出电压 5 V
输出电流 0.4 A
输出功率 2 W
隔离电压 2 kV
开关频率 300 kHz
输入电压Max 36 V
输入电压Min 9 V
输入电压DC Max 36 V
输入电压DC Min 9 v
输出电流Max 400 mA
输出功率Max 2 W
工作温度Max 75 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 7
封装 SIP-8
长度 0.86 in
宽度 9.2 mm
高度 11.1 mm
封装 SIP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业），医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
