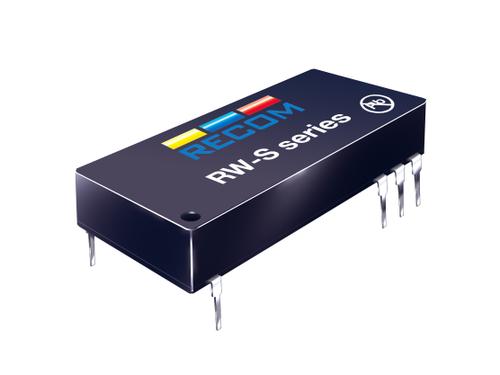

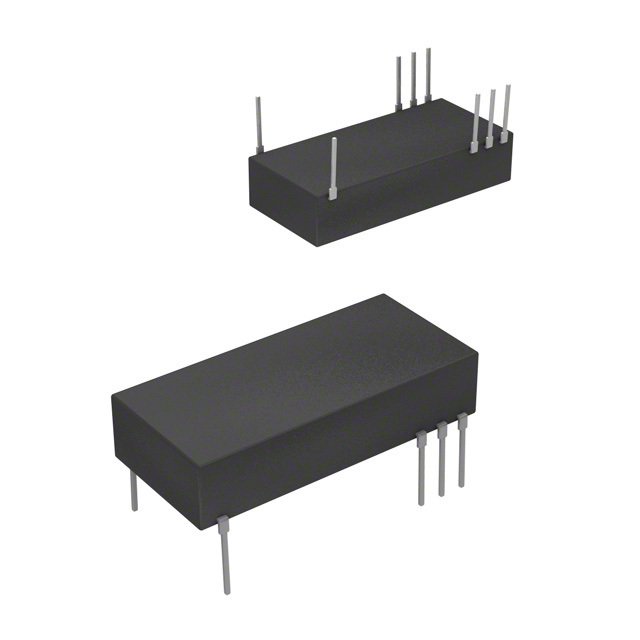

RW-0509S

隔离式DC/DC转换器 3W DC/DC MIN 1kV REG 2:1 4.5-9Vin 9Vout

Description

The RW series with 2:1 input voltage ranges and max. height of 7,0 mm has been designed for the telecom -

and industrial automation markets. They are particularly aimed at applications where pcb-space is at a premi

um, still requiring industrial standard pinning. SMD pinning is also available. The converters supply the full 3

Watts without additional heat-sinks over the temperature range -40°C to +80°C.

Features

Regulated Converters

●DIP24 Miniature Package

●2:1 Wide Range Voltage Input

●1kVDC Isolation

●UL94V-0 Package Material

●Continuous Short Circuit Protection

●Less than 7mm Height

●Cost Effective

●Short Lead Time

●No External Capacitor needed

●Efficiency to 88%
