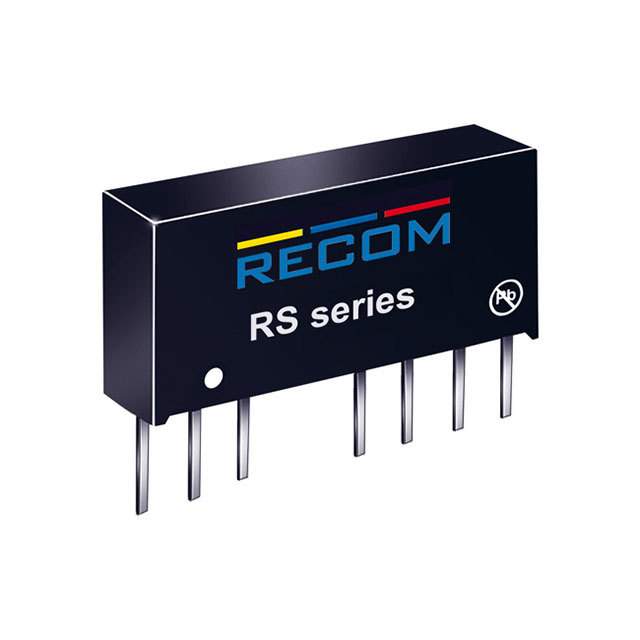

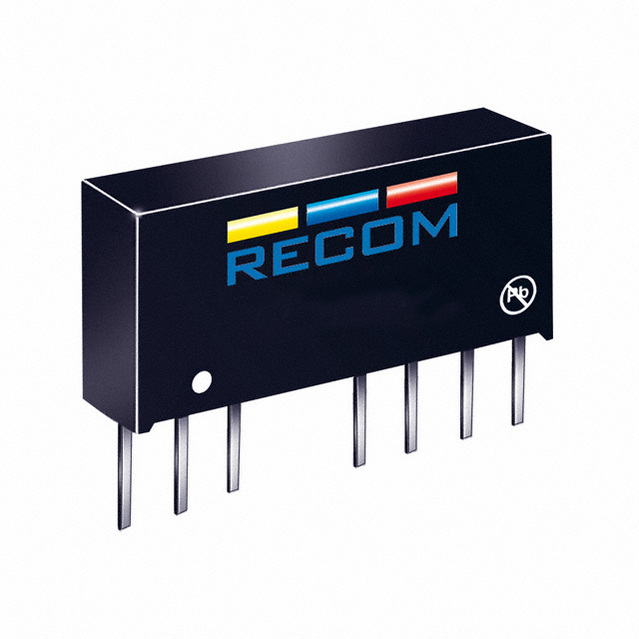

Module DC-DC 5Vin 2Out 15V/-15V 0.067A/-0.067A 2W Medical 7Pin SIP Tube
Provide the ability to switch between voltages by using this step up DC to DC converter and switching regulator module. It has a voltage of 15|-15 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging.
得捷:
2W DC/DC-CONVERTER ECONOLINE SIP
艾睿:
Module DC-DC 5VIN 2-OUT 15V/-15V 0.067A/-0.067A 2W Medical 7-Pin SIP Tube
Chip1Stop:
Module DC-DC 2-OUT 15V/-15V 0.067A/-0.067A 2W 7-Pin SIP Tube
Newark:
# RECOM POWER RS-0515D/H3 Isolated Board Mount DC/DC Converter, Medical, Fixed, 2 Output, 4.5 V, 9 V, 2 W, 15 V
额定功率 2 W
输出接口数 2
输出电压 ±15 V
输出功率 2 W
隔离电压 3 kV
开关频率 300 kHz
输入电压Max 9 V
输入电压Min 4.5 V
输入电压DC Max 9 V
输入电压DC Min 4.5 v
输出电流Max 67mA, 67mA
输出功率Max 2 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 9V
安装方式 Through Hole
引脚数 7
封装 SIP-8
封装 SIP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业），医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
