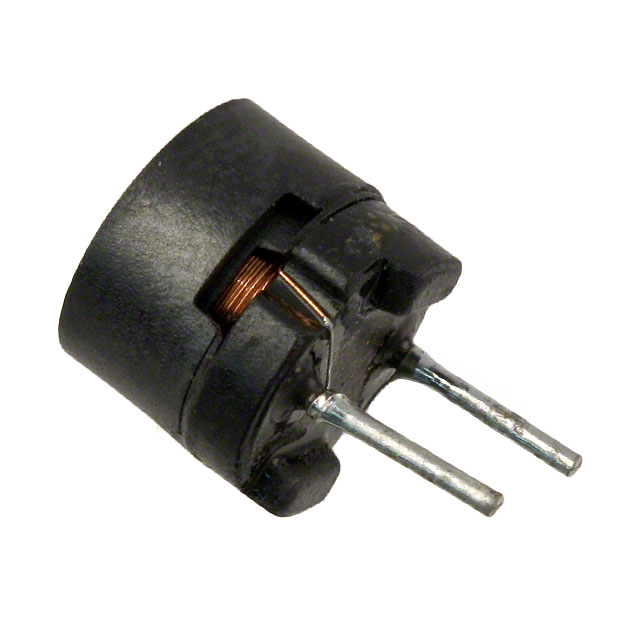

径向引线RF扼流圈 Radial Lead RF Choke
4.7mH Shielded Wirewound Inductor 110mA 14.7Ohm Max Radial, Vertical Cylinder
得捷:
FIXED IND 4.7MH 110MA 14.7OHM TH
立创商城:
4.7mH ±10% 14.7Ω
艾睿:
Resist changes in electric current flow in your electrical design with this rf choke RL875S-472K-RC leaded inductor from Bourns. This part has a pitch of 5 mm. This leaded inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. It has an inductance of 4.7m H. This device is made with bobbin core technology. It has a tolerance of 10%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1MTyp Hz. This leaded inductor has a maximum DC current of 110m A with a maximum resistance of 14.7 Ohm. This product is 7.5 mm tall with a diameter of 8.3 mm.
Electro Sonic:
RF Choke Shielded Bobbin Core 4.7mH 10% 1KHz 95Q-Factor Ferrite 110mA 14.7Ohm DCR RDL Bag
