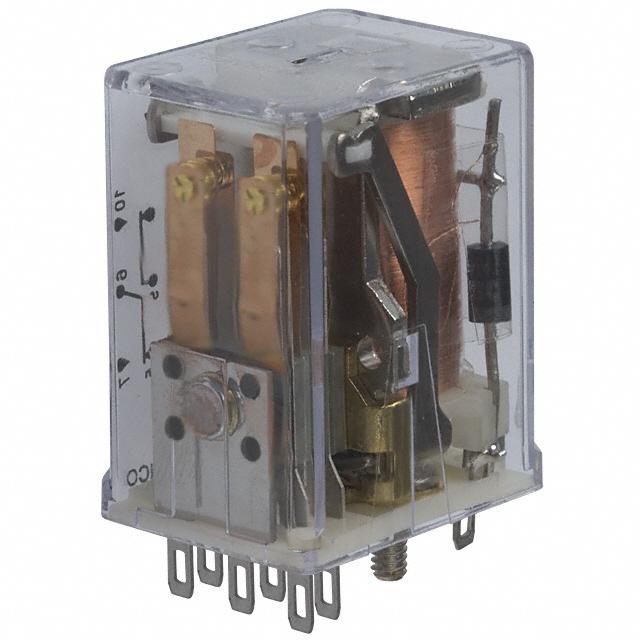

Electromechanical Relay 24VDC 700Ω 2A DPDT 24.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
General Purpose Relay DPDT 2 Form C Socketable
得捷:
RELAY GEN PURPOSE DPDT 2A 24VDC
艾睿:
Signal Relay 24VDC 7.5A DPDT24.1x18.7x30.15mm Socket
Chip1Stop:
Electromechanical Relay 24VDC 700Ohm 2A DPDT 24.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
Verical:
Electromechanical Relay 24VDC 700Ohm 2A DPDT 24.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
MASTER:
Signal Relay 24VDC 7.5A DPDT24.1x18.7x30.15mm Socket
Electro Sonic:
Signal Relay 24VDC 7.5A DPDT24.1x18.7x30.15mm Socket
额定电压DC 28 V
额定电压AC 120 V
输入电压DC 24.0 V
触点额定电流 2 A
线圈电压 24 VDC
线圈电流 34.28 mA
线圈功率DC 500 mW
线圈电阻 700 Ω
额定电流Max 2 A
线圈电压DC 24 V
开关电流Max 7.5 A
工作温度Max 75 ℃
工作温度Min -55 ℃
安装方式 Plug In
引脚数 8
长度 24.13 mm
宽度 18.67 mm
高度 30.15 mm
触点材质 Silver
工作温度 -55℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410020
