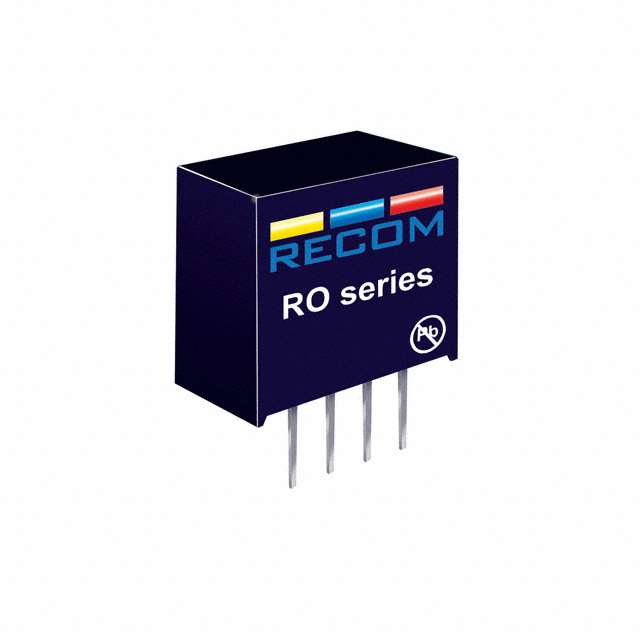

ROE-3.305S

ROE 系列 1 W 3.3 V 输入 单输出 5 V 隔离 DC/DC-转换器 - SIP-4

The from Recom Power is a ROE series unregulated DC to DC converter in 4 pin SIP package. The DC to DC converter is typically used in general purpose power isolation and voltage matching applications and feature a full industrial operating temperature range of -40°C to +85°C without derating.

.

Input voltage is 3.3VDC

.

Output voltage is 5VDC

.

Output current is 200mA

.

Typical efficiency is 79%

.

Maximum capacitive load is 470µF

.

Isolation voltage is 1KVDC/1sec

.

UL60950-1, C22.2 no. 60950-1-07 certified

.

Dimension is 11.5mm x 6mm x 10mm
