6VDC 7.5A 无锁存

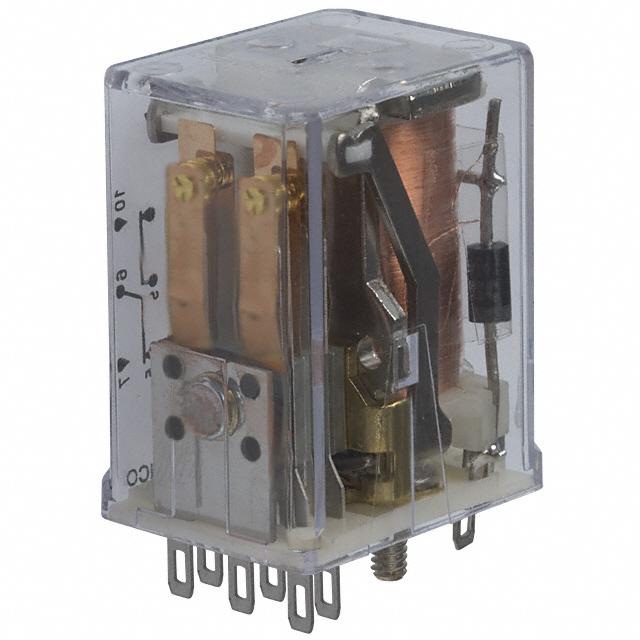

Electromechanical Relay 6VDC 200Ohm 7.5A DPDT 24.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
Product Highlights
R10 Series
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 7.5 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
立创商城:
6VDC 7.5A 无锁存
得捷:
RELAY GEN PURPOSE DPDT 7.5A 6V
Allied Electronics:
R10-E1W2-S200=R10, 8-1393765-5
Chip1Stop:
Electromechanical Relay DPDT 7.5A 6VDC 200Ohm Plug-In
Verical:
Electromechanical Relay 6VDC 200Ohm 7.5A DPDT 24.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
MASTER:
Power Relay
Online Components:
Electromechanical Relay 6VDC 200Ohm 7.5A DPDT 24.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
Electro Sonic:
Power Relay
额定电压DC 28 V
额定电压AC 120 V
输入电压DC 6.00 V
触点类型 DPDT
触点额定电流 7.5 A
线圈电压 6 VDC
线圈电流 30 mA
线圈功率DC 100 mW
线圈电阻 200 Ω
额定电流Max 7.5 A
线圈电压DC 6 V
线圈功率 180 mW
额定电压DC Max 28 V
额定电压AC Max 120 V
安装方式 Solder Lug
引脚数 8
封装 -
长度 24.13 mm
宽度 18.67 mm
高度 30.15 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410020
