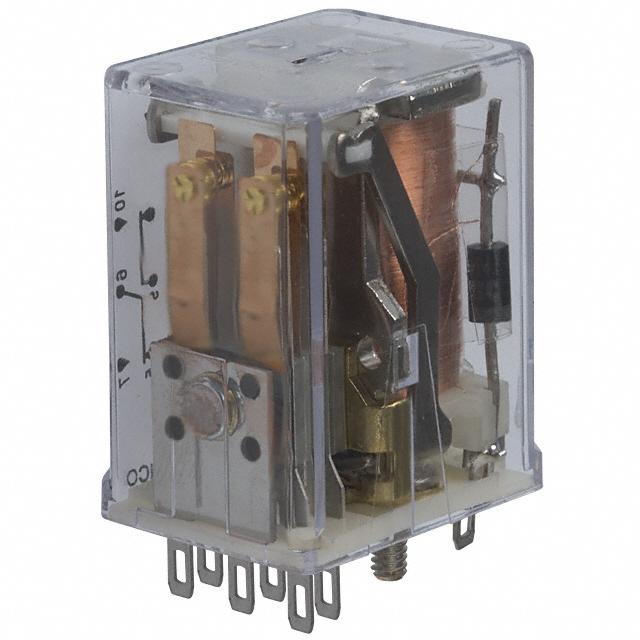

Electromechanical Relay 48VDC 1.25KΩ 5A 8PDT 40.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
Electromechanical Relay 48VDC 1.25KOhm 5A 8PDT 40.13x18.67x30.15mm Plug-In General Purpose Relay
Product Highlights
R10 Series
Contact Arrangement = 8 Form C, 8PDT, 8 C/O
Contact Current Rating = 5 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE 8PDT 5A 48V
Chip1Stop:
Electromechanical Relay 8PDT 5A 48VDC 1.25KOhm Plug-In
Verical:
Electromechanical Relay 48VDC 1.25KOhm 5A 8PDT 40.13x18.67x30.15mm Plug-In General Purpose Relay
MASTER:
Electromechanical Relay 48VDC 1.25KOhm 5A 8PDT 40.13x18.67x30.15mm Plug-In General Purpose Relay
Online Components:
Electromechanical Relay 48VDC 1.25KOhm 5A 8PDT 40.13x18.67x30.15mm Plug-In General Purpose Relay
Electro Sonic:
Electromechanical Relay 48VDC 1.25KOhm 5A 8PDT 40.13x18.67x30.15mm Plug-In General Purpose Relay
额定电压DC 30 V
额定电压AC 120 V
输入电压DC 48.0 V
触点额定电流 5 A
线圈电压 48 VDC
线圈电流 38.4 mA
线圈功率DC 1.00 W
线圈电阻 1.25 kΩ
额定电流Max 5 A
线圈电压DC 48 V
线圈功率 1.9 W
额定电压DC Max 30 V
额定电压AC Max 120 V
安装方式 Plug In
引脚数 26
长度 40.13 mm
宽度 18.67 mm
高度 30.15 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 75℃
产品生命周期 Obsolete
包装方式 Tray, Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410020
