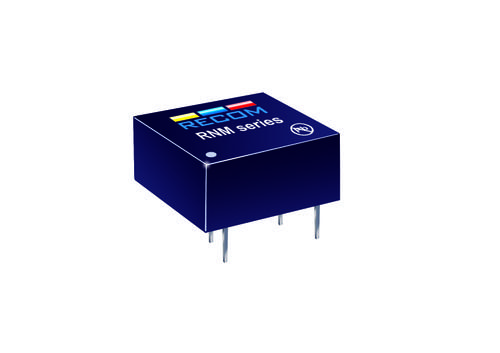

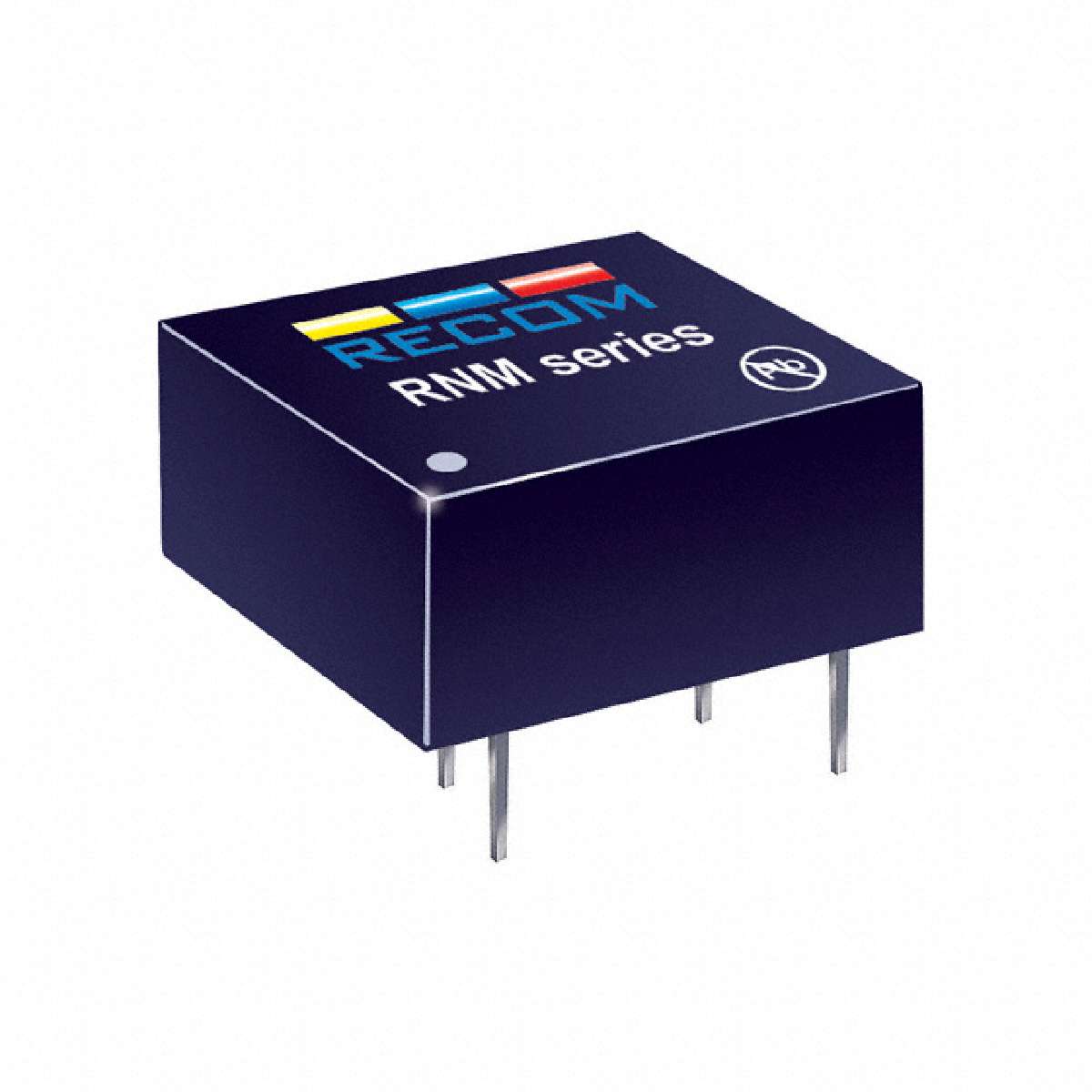

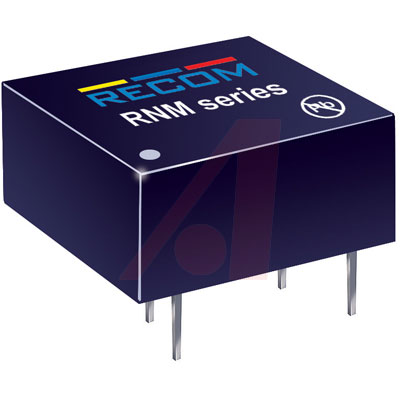

RNM-1215S

CONV DC-DC 1W 12Vin 15Vout

The RNM series DC/DC converters are ultra-compact isolated single output converters for applications where board space is at a premium. Despite their small size, the converters are fully featured with a full industrial operating temperature of –40°C to +85°C without derating +100°C with derating, 1 kVDC isolation is standard and 2 kVDC is available as an option.

* Ultra-Compact, Only 8.3 × 8.3 × 6.8 mm

* No External Components Required

* Full Industrial Operating Temperature Range

* Toroidal Magnetics

* Efficiency to 84%
