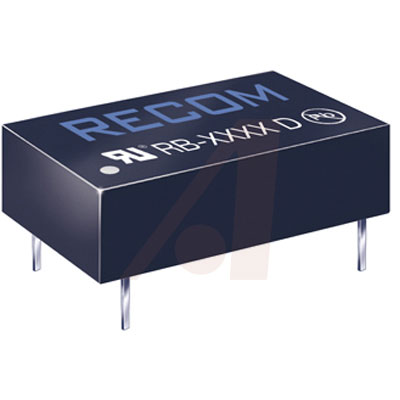

直流/直流转换器 隔离式板载, ITE & 医用, 2输出, 1 W, 12 V, 42 mA, -12 V, 42 mA

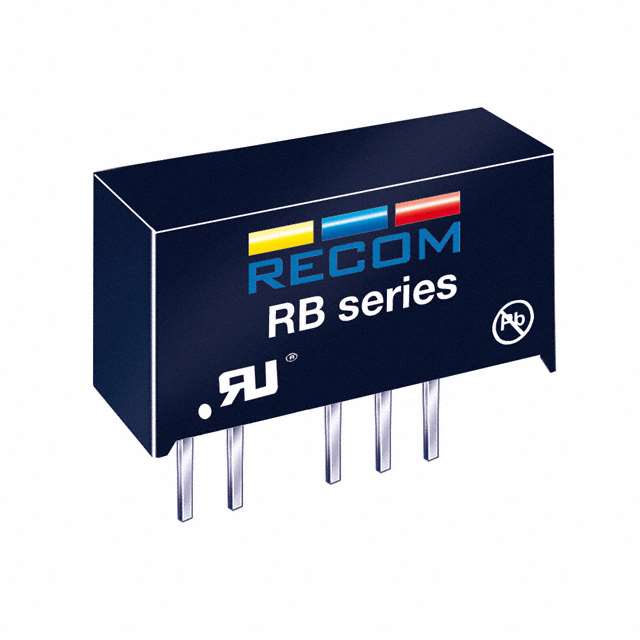

The RB series DC/DC converter has been designed for isolating or converting DC power rails in general purpose applications. Although low cost, it does not compromise on features and offers 1KVDC or 2kVDC isolation, a –40 degree C to 85 degree C operating temperature range and optional continuous short circuit protection.
Low Cost 1W Converter
Power Sharing on Dual Output Version
Industry Standard Pinout
1kVDC or 2kVDC Isolation Options
Optional Continuous Short Circuit Protected
UL94V-0 Package Material
Efficiency to 85 percent
额定功率 1 W
输出接口数 2
输出电压 ±12 V
输出功率 1 W
隔离电压 1 kV
开关频率 50kHz ~ 105kHz
输入电压Max 5.5 V
输入电压Min 4.5 V
输入电压DC Max 5.5 V
输入电压DC Min 4.5 v
输出电流Max 42mA, 42mA
输出功率Max 1 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 5V ~ 5V
安装方式 Through Hole
引脚数 5
封装 SIP-7
宽度 6.096 mm
高度 10.2 mm
封装 SIP-7
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Industrial, ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RB-0512D/P RECOM Power | 当前型号 | 当前型号 |
RB-3.312D/P RECOM Power | 类似代替 | RB-0512D/P和RB-3.312D/P的区别 |
NMA0512SC 村田 | 功能相似 | RB-0512D/P和NMA0512SC的区别 |
NMV0512SC 村田 | 功能相似 | RB-0512D/P和NMV0512SC的区别 |
