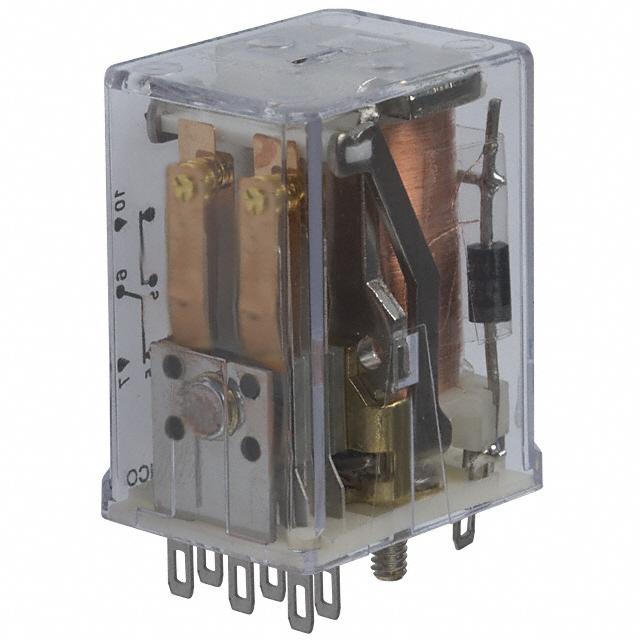

TE CONNECTIVITY / POTTER & BRUMFIELD R10S-E1Y1-J5.0K 功率继电器
Electromechanical Relay 12VDC 5KOhm 3A SPDT 18.67mm 38.1mm Plug-In General Purpose Relay
Product Highlights
R10 Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 3 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPDT 3A 12V
立创商城:
12VDC 3A 无锁存
贸泽:
通用继电器 SPDT 2A 12VDC 5KOhm GEN PURPOSE RELAY
e络盟:
继电器, SPDT, 120VAC, 28VDC, 2A
艾睿:
Electromechanical Relay 12VDC 5KOhm 3A SPDT 18.67mm 38.1mm Plug-In General Purpose Relay
Chip1Stop:
Electromechanical Relay 12VDC 5KOhm 3A SPDT 18.67x38.1mm Plug-In General Purpose Relay
Verical:
Electromechanical Relay 12VDC 5KOhm 3A SPDT 18.67x38.1mm Plug-In General Purpose Relay
MASTER:
Power Relay 12VDC 5KOhm 3A SPDT18.67x38.1mm Plug-In General Purpose Relay
Online Components:
Electromechanical Relay 12VDC 5KOhm 3A SPDT 18.67mm 38.1mm Plug-In General Purpose Relay
Electro Sonic:
Power Relay 12VDC 5KOhm 3A SPDT18.67x38.1mm Plug-In General Purpose Relay
额定电压DC 28 V
额定电压AC 120 V
触点类型 SPDT
功耗 10 mW
触点额定电流 3 A
线圈电压 28 VDC
线圈电流 2.5 mA
线圈功率DC 10.0 mW
线圈电阻 5 kΩ
载流 7.50 A
额定电流Max 3 A
线圈电压DC 12 V
开关电流Max 3 A
工作温度Max 75 ℃
工作温度Min -55 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
安装方式 PCB, PC Board
引脚数 5
封装 -
长度 29.6 mm
宽度 18.7 mm
高度 38.1 mm
封装 -
触点材质 Silver
工作温度 -55℃ ~ 75℃
产品生命周期 Active
包装方式 Tray, Box
RoHS标准 RoHS Compliant
含铅标准 Not Applicable
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410020
