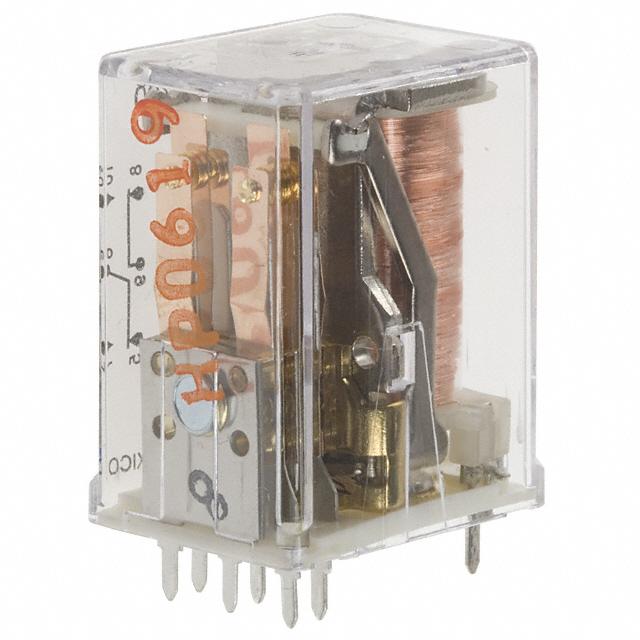

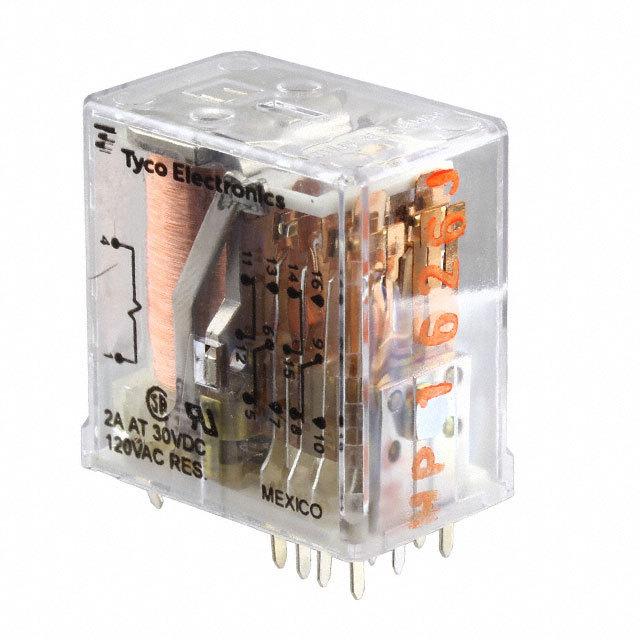

24VDC 5A 无锁存
General Purpose Relay DPDT 2 Form C 24VDC Coil Through Hole
立创商城:
24VDC 5A 无锁存
得捷:
RELAY GEN PURPOSE DPDT 5A 24V
贸泽:
General Purpose Relays DPDT 5A 24VDC 700Ohm GEN PURPOSE RELAY
艾睿:
Electromechanical Relay 24VDC 700Ohm 5A DPDT24.13x18.67x30.15mm THT General Purpose Relay
Chip1Stop:
Electromechanical Relay DPDT 5A 24VDC 700Ohm Through Hole
Verical:
Electromechanical Relay 24VDC 700Ohm 5A DPDT 24.13mm 18.67mm 30.15mm THT General Purpose Relay
MASTER:
Power Relay
Electro Sonic:
Power Relay
额定电压DC 30 V
额定电压AC 120 V
输入电压DC 24.0 V
触点类型 DPDT
功耗 500 mW
触点额定电流 5 A
线圈电压 24 VDC
线圈电流 34.28 mA
线圈功率DC 500 mW
线圈电阻 700 Ω
载流 5.00 A
额定电流Max 5 A
线圈电压DC 24 V
线圈功率 900 mW
开关电流Max 5 A
工作温度Max 75 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 8
封装 -
长度 24.13 mm
宽度 18.67 mm
高度 30.15 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410020
