R113182000

RADIALL  R113182000  射频/同轴连接器, MCX同轴, 直角插头, 压接, 50 ohm, RG188, RG316, 黄铜

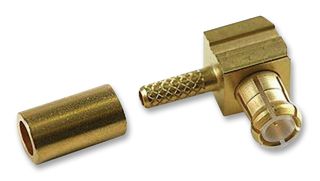

The is a right angle MCX Plug with gold over nickel plated brass center contact, gold over nickel plated beryllium copper outer contact, gold over nickel plated brass body for 2.6/50 S cable. This MCX series plug has PTFE insulation, cable mounting and crimp termination. The MCX series connector utilizes the SMB series electrical line and features a particularly simple, compact and robust interface. The MCX series is 30% smaller than the SMB. The MCX series connector helps to miniaturize equipment. It optimizes PCB layouts with its range of models for PCBs including surface mount and press-fit receptacles.

.

Subminiature coaxial connector

.

Push-pull snap-on mating

.

Complies with specification CECC 22220

.

-55 to 155°C Temperature range
