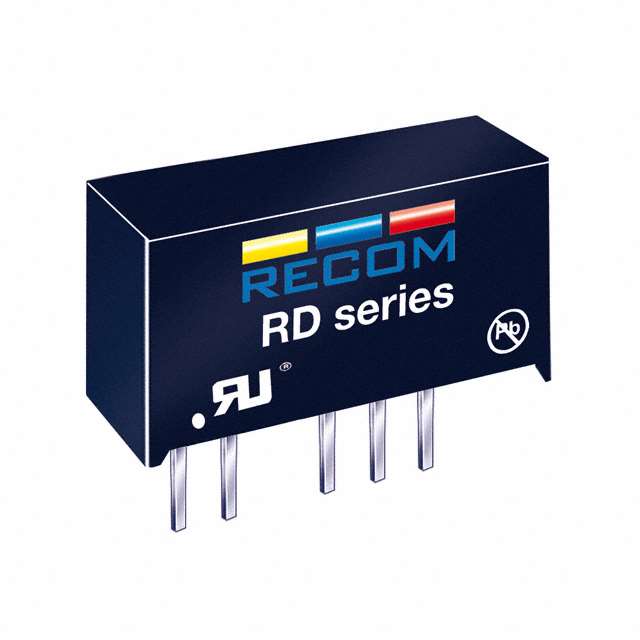

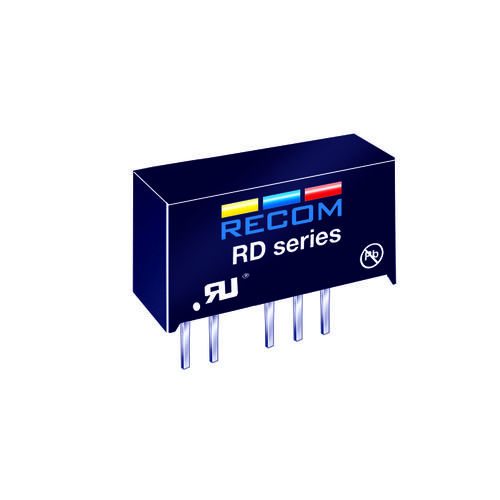

Module DC-DC 12Vin 2Out 5V/-5V 0.2A/-0.2A 2W 5Pin SIP Tube
Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 10.8V - 13.2V Input
得捷:
DC DC CONVERTER +/-5V 2W
贸泽:
Isolated DC/DC Converters 2W DC/DC 1kV UNREG 12Vin +/-5Vout
艾睿:
Provide the ability to switch between voltages by using this step down RD-1205D/P DC to DC converter and switching regulator module. It has a voltage of 5|-5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging.
Chip1Stop:
Module DC-DC 12VIN 2-OUT 5V/-5V 0.2A/-0.2A 2W 5-Pin SIP Tube
Newark:
# RECOM POWER RD-1205D/P Isolated Board Mount DC/DC Converter, Medical, Fixed, 2 Output, 10.8 V, 13.2 V, 2 W, 5 V
电源电压DC 12.0 V
额定功率 2 W
输出接口数 2
输出电压 ±05 V
输出功率 2 W
隔离电压 1 kV
开关频率 34kHz ~ 85kHz
输入电压Max 13.2 V
输入电压Min 10.8 V
输入电压DC Max 13.2 V
输入电压DC Min 10.8 v
输出电流Max 200mA, 200mA
输出功率Max 2 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 12V ~ 12V
安装方式 Through Hole
引脚数 5
封装 SIP-7
长度 19.558 mm
宽度 7.112 mm
高度 1.27 mm
封装 SIP-7
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
