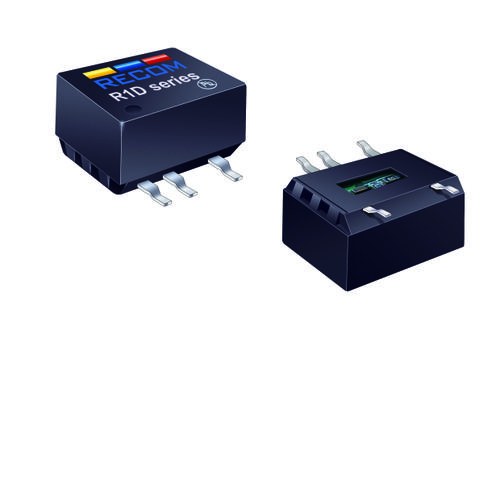

Module DC-DC 12Vin 2Out 12V/-12V 0.042A/-0.042A 1W Medical 6Pin SMD Tube
Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 12|-12 V. This part has a temperature range of -40 °C to 100 °C. This device comes in tube packaging.
得捷:
DC DC CONVERTER +/-12V 1W
艾睿:
Provide the ability to switch between voltages by using this step down R1D-1212/HP DC to DC converter and switching regulator module. It has a voltage of 12|-12 V. This part has a temperature range of -40 °C to 100 °C. This device comes in tube packaging.
额定功率 1 W
输出接口数 2
输出功率 1 W
隔离电压 3 kV
开关频率 20kHz ~ 85kHz
输入电压Max 13.2 V
输入电压Min 10.8 V
输出电流Max 42mA, 42mA
工作温度Max 100 ℃
工作温度Min -40 ℃
输入电压 12 V
安装方式 Surface Mount
引脚数 6
封装 SMD-10
长度 0.6 in
宽度 8.128 mm
高度 6.7 mm
封装 SMD-10
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE(商业),医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
R1D-1212/HP RECOM Power | 当前型号 | 当前型号 |
RSD-1212/HP RECOM Power | 完全替代 | R1D-1212/HP和RSD-1212/HP的区别 |
