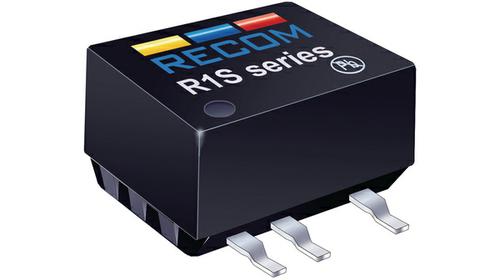

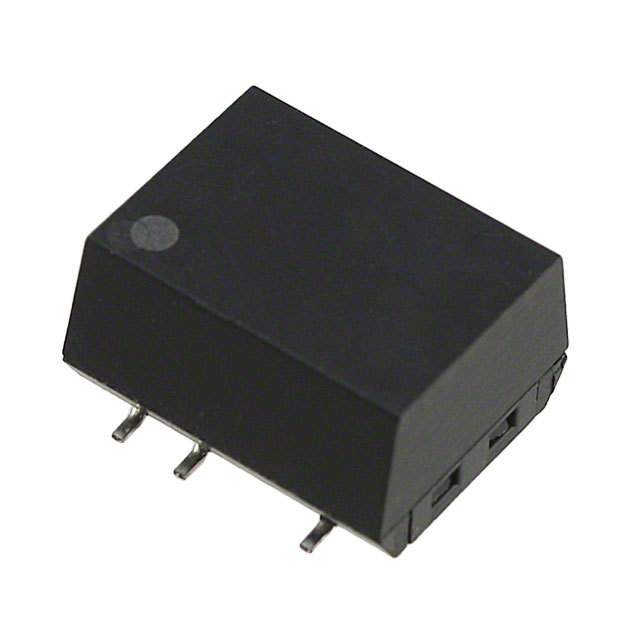

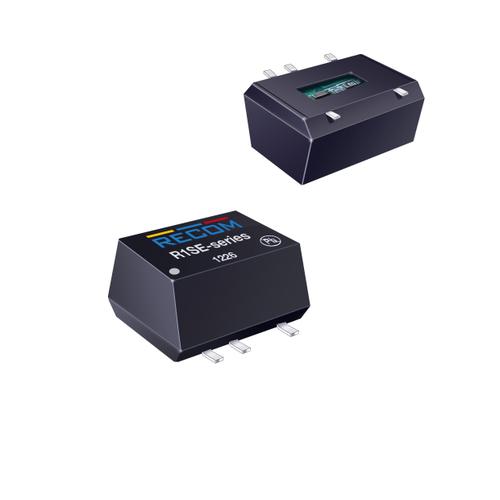

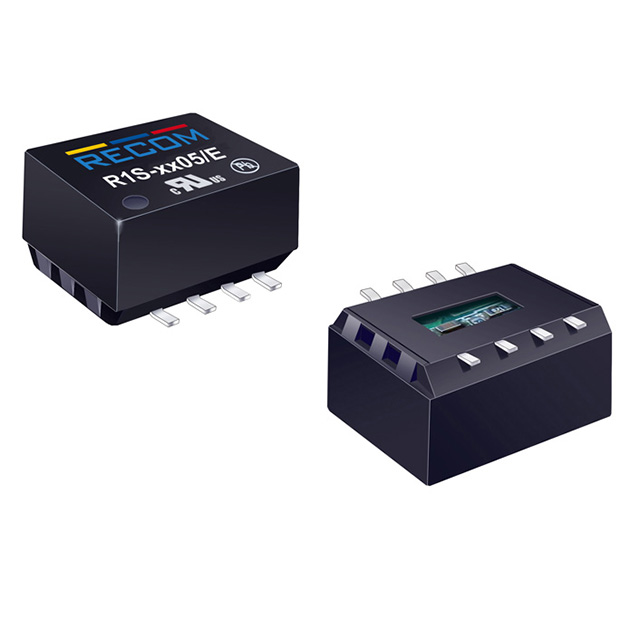

Recom ECONOLINE 1W SMD Unregulated DC/DC Converter - R1S-xx05/E Series
ECONOLINE R1S-xx05/E series 1W SMD unregulated single output DC/DC converters with a 1.1 input range, high efficiency and low quiescent current. These SMD unregulated DC/DC converters have an extended operating temperature range of -40 to +100°C without derating. Typical applications for these unregulated R1S-xx05/E series 1W SMD mount DC/DC converters includes battery powered supplies and high efficiency or high temperature applications.
High efficiency of up to 80% at full load, 65% at 20% load
1 kVDC isolation
-40 to +100°C operating temperature range without derating
5 pins out of 8 fitted
### 注
MTBF: MIL-HDBK 217F 25%
### 认可
cULus
### 标准
EN-60950-1, UL-60950-1
额定功率 1 W
输出接口数 1
输入电压DC 3.30 V
输出电压 5 V
输出电流 0.2 A
输出功率 1 W
隔离电压 1 kV
开关频率 20kHz ~ 90kHz
输入电压Max 3.63 V
输入电压Min 2.97 V
输入电压DC Max 3.63 V
输入电压DC Min 2.97 v
输出电流Max 200 mA
输出功率Max 1 W
工作温度Max 100 ℃
工作温度Min -40 ℃
输入电压 2.97VDC ~ 3.63VDC
安装方式 Surface Mount
引脚数 5
封装 SMD-8
长度 12.75 mm
宽度 10.7 mm
高度 6.7 mm
封装 SMD-8
重量 1 g
工作温度 -40℃ ~ 100℃
产品生命周期 Active

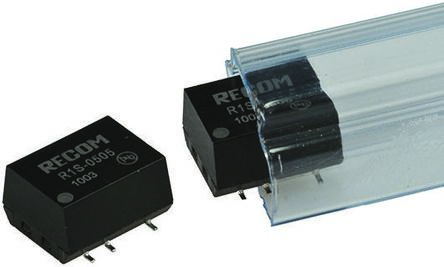

包装方式 Tube
制造应用 ITE(商业), 信号处理, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
