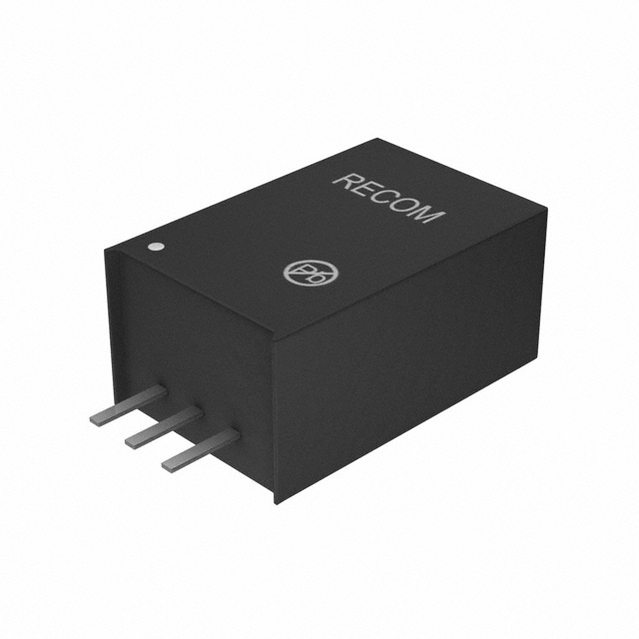

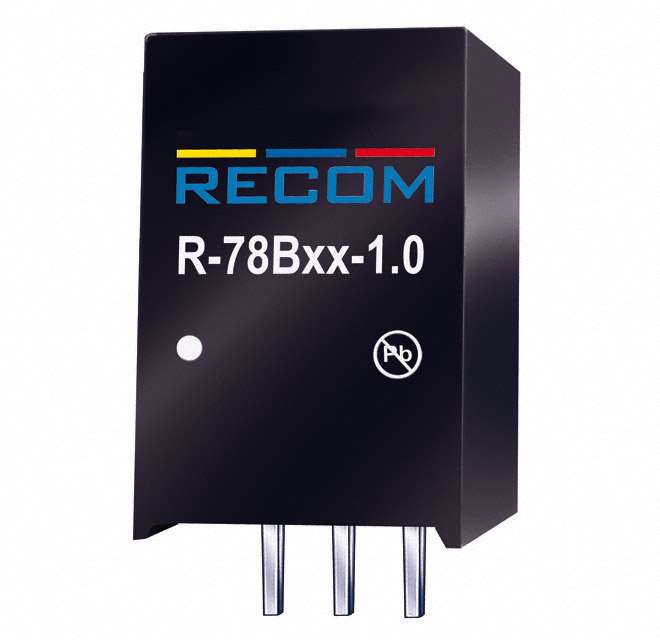

R-78B1.5-1.0

直流-直流转换器, 1.5V, 1A

1.0 AMP SIP3 Single Output

Description

The R-78Bxx-1.0 Series high efficiency switching regulators are ideally suited to replace 78xx linear regulators and are pin compatible. The efficiency of up to 97% means that very little energy is wasted as heat so there is no need for any heat sinks with their additional space and mounting costs.

Features

● Efficiency up to 97%,Non isolated, no need for heatsinks

● Pin-out compatible with LM78XX Linears

● Low profile L

.

W*H=11.5*8.5*17.5mm

● Wide input range.4.75V ~ 34V

● Short circuit protection, Thermal shutdown

● Low ripple and noise

● “L” version with 90° pins

● See Innoline Application Notes for use as an inverter alternative to LM79xx Linear
