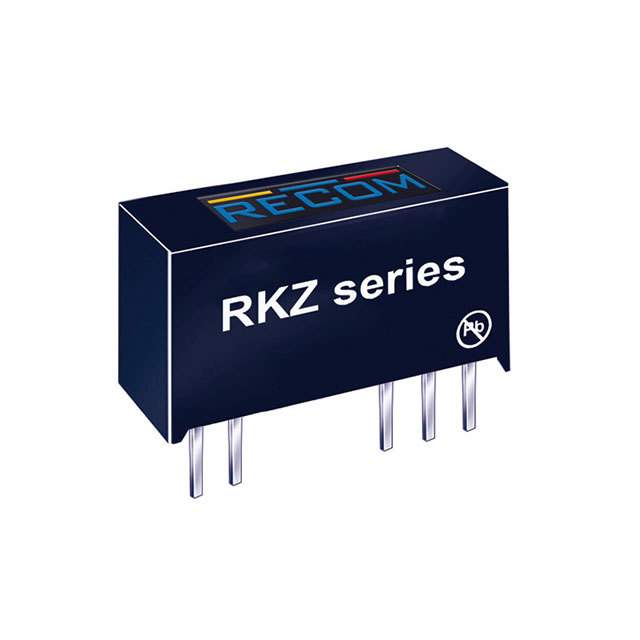

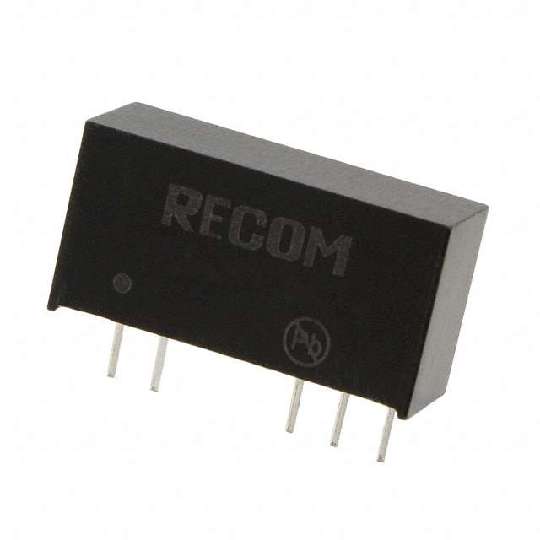

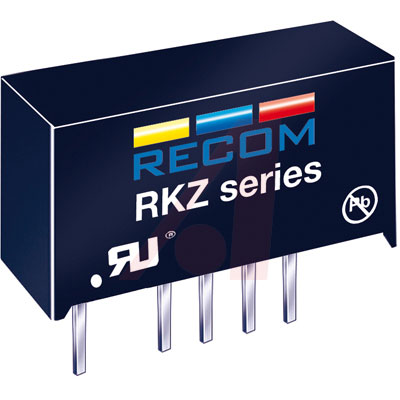

DC-DC CONVERTER 15V -9V 2W
The RKZ Series of 2 W DC/DC Converters are certified to EN 60950-1 and to the medical standard EN-60601-1. This makes them suitable for high end industrial applications such as IGBT driver circuitry as well as standard medical applications.
* High Isolation 2 W Converter
* Approved for Medical Applications
* 3 kVDC and 4 kVDC Isolation Options
* UL 94 V-0 Package Material
* Optional Continuous Short Circuit Protected
* Efficiency to 84%
* Custom Solutions Available
额定功率 2 W
输出接口数 2
输出功率 2 W
隔离电压 3 kV
输入电压Max 5.5 V
输入电压Min 4.5 V
输出电流Max 66mA, 111mA
工作温度Max 90 ℃
工作温度Min -40 ℃
输入电压 4.5VDC ~ 5.5VDC
安装方式 Through Hole
引脚数 5
封装 SIP-7
长度 19.65 mm
宽度 7.05 mm
高度 10.2 mm
封装 SIP-7
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
