R0.25S-2405/H

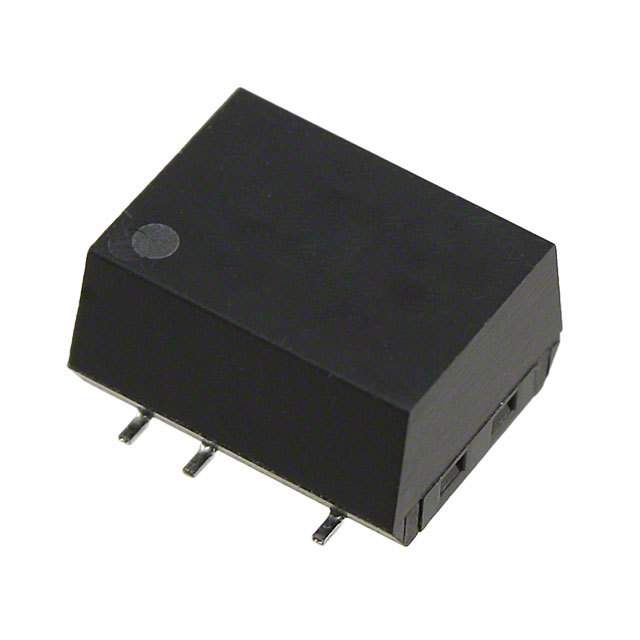

R0.25S-2405/H图片1

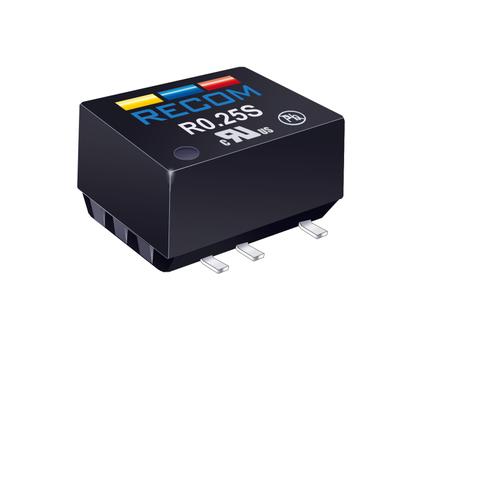

R0.25S-2405/H图片2
R0.25S-2405/H图片3
R0.25S-2405/H图片4
R0.25S-2405/H图片5
R0.25S-2405/H概述

Module DC-DC 24Vin 1Out 5V 0.05A 0.25W1/4W Medical 5Pin SMD Tube

Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 5 V. This part has a minimum operating temperature of -40 °C and a maximum of 100 °C. This device comes in tube packaging.


得捷:
DC DC CONVERTER 5V 250MW


艾睿:
Module DC-DC 24VIN 1-OUT 5V 0.05A 0.25W Medical 5-Pin SMD Module Tube


R0.25S-2405/H中文资料参数规格
技术参数

额定功率 250 mW

输出接口数 1

输出电压 5 V

输出电流 0.05 A

输出功率 0.25 W

隔离电压 3 kV

开关频率 90 kHz

输入电压Max 26.4 V

输入电压Min 21.6 V

输出电流Max 50 mA

工作温度Max 100 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 5

封装 SMD-8

外形尺寸

封装 SMD-8

物理参数

工作温度 -40℃ ~ 100℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 ITE(商业),医疗

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买R0.25S-2405/H
型号: R0.25S-2405/H
制造商: RECOM Power
描述:Module DC-DC 24Vin 1Out 5V 0.05A 0.25W1/4W Medical 5Pin SMD Tube
